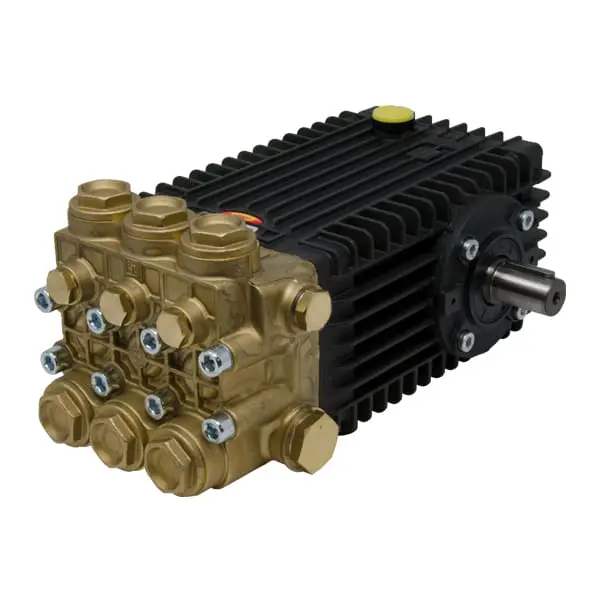

General Pump TSF2219 TSF Series Triplex Plunger Pump

Description

Features:

• Oversized Roller Bearings
• Fully Anodized Crankcase
• Innovative New Seal Design Extends Seal Life
• New Plunger Design Improves Thermal Shock Resistance
• New Valve Cap Improves Hydrostatic Performance

Specifications:

• Max GPM: 7.7 / 9.3
• Max PSI: 3000 PSI / 3000 PSI
• Horsepower: 15.8EBHP / 19.1EBHP
• Max Pump Speed: 1450 RPM /1750 RPM
• Max Inlet Pressure: 125 PSI
• Plunger Bore: 22mm
• Plunger Stroke: 19mm
• Oil Capacity: 33.8 oz
• Max Fluid Temp: 165 Deg F
• Inlet Port Thread: 3/4″ – 14 BSP-F
• Discharge Port Thread: 3/8″ – 19 BSP-F
• Shaft Diameter: 24mm
• Weight: 40.7lbs
• Dimensions: 14.94″ x 9.78″ x 6.99″
