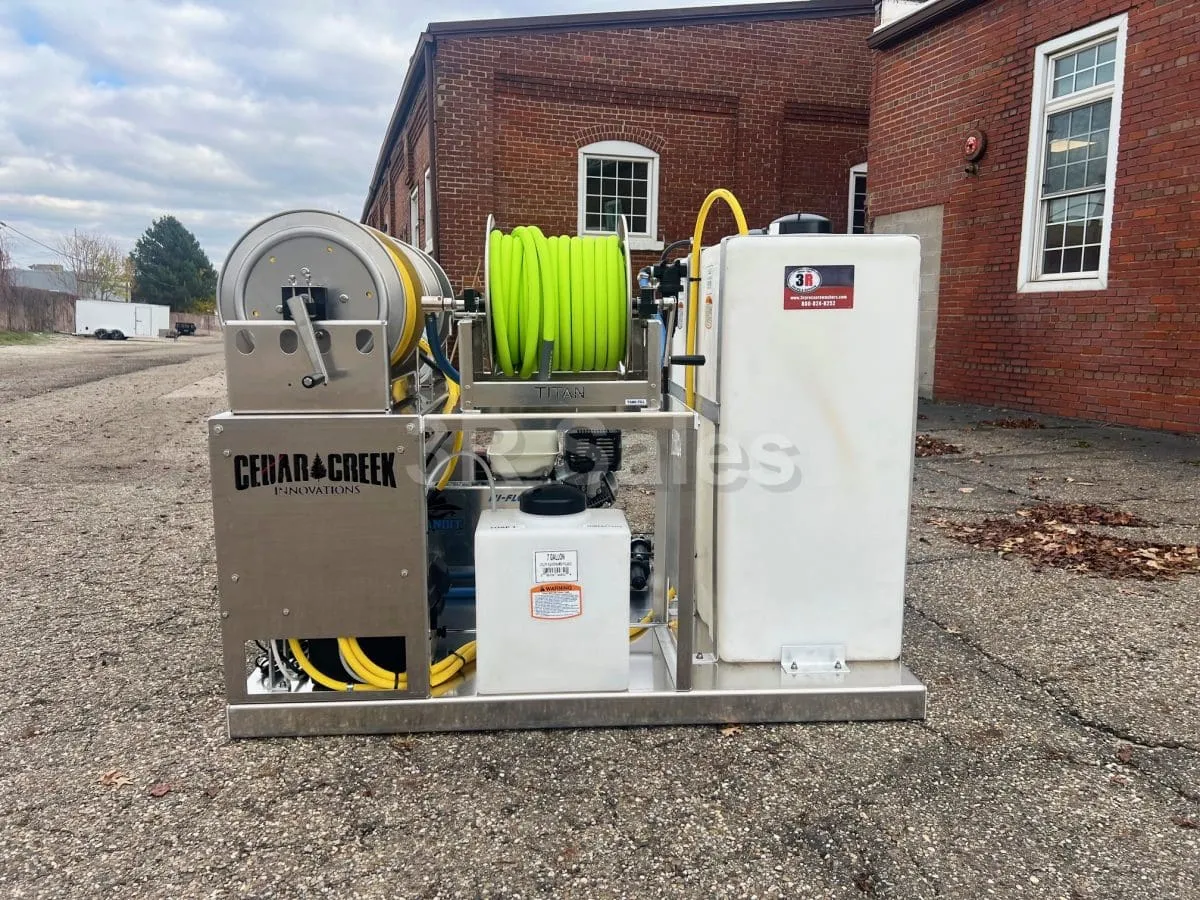

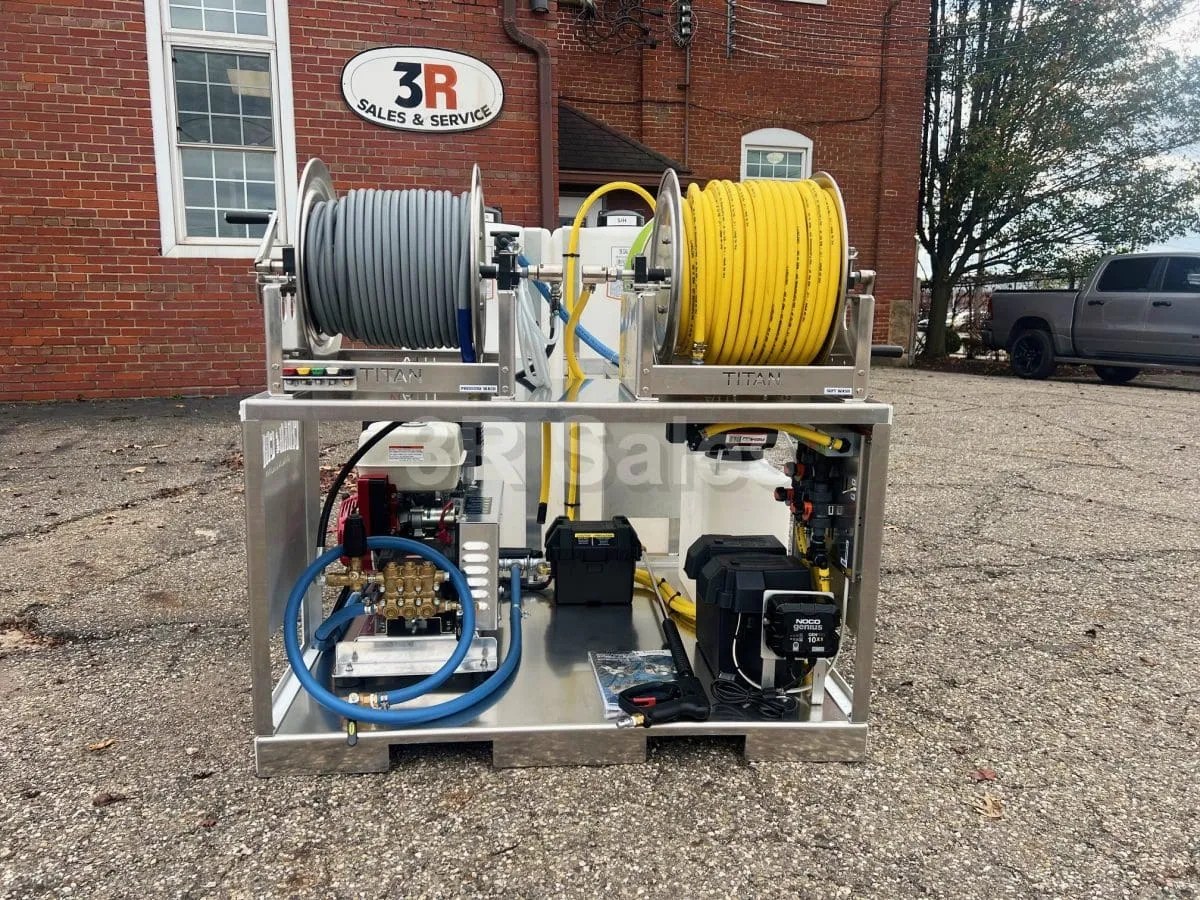

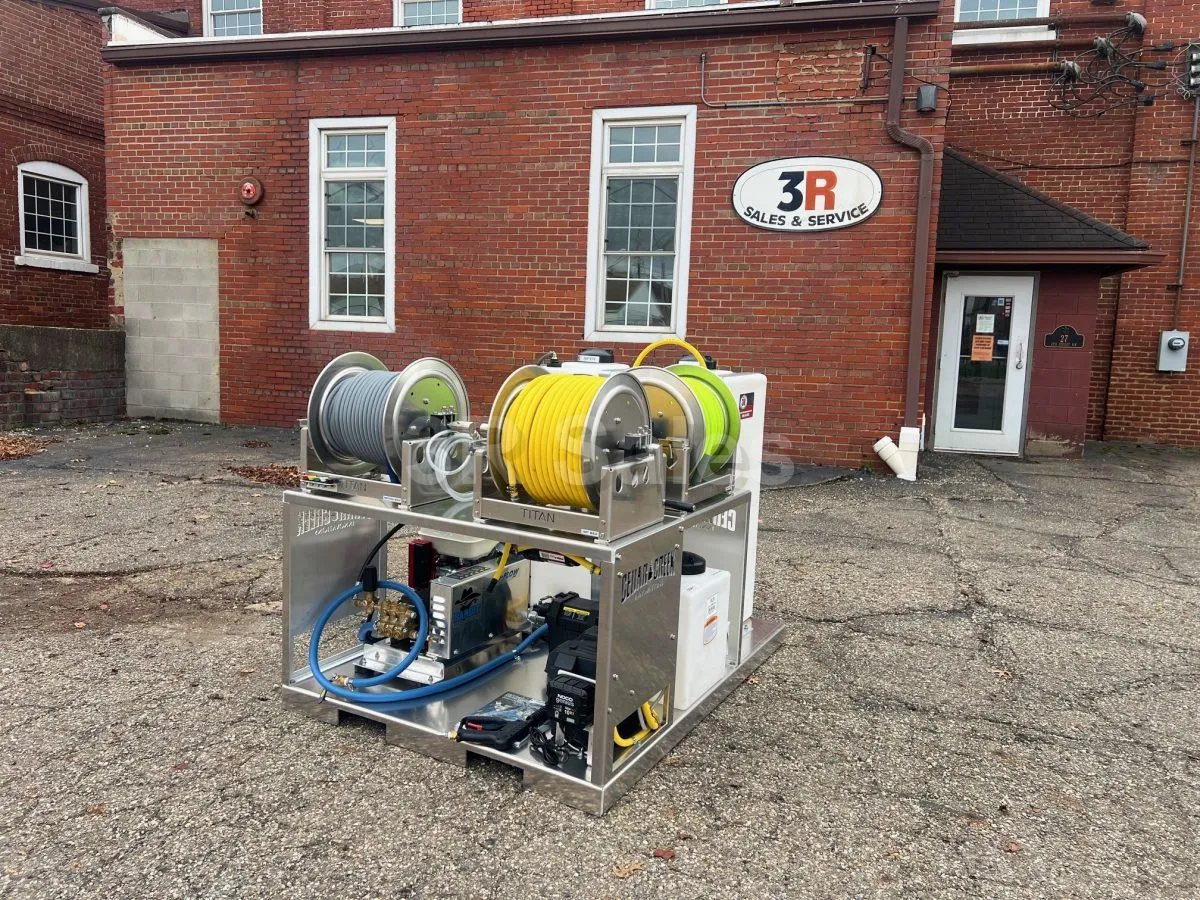

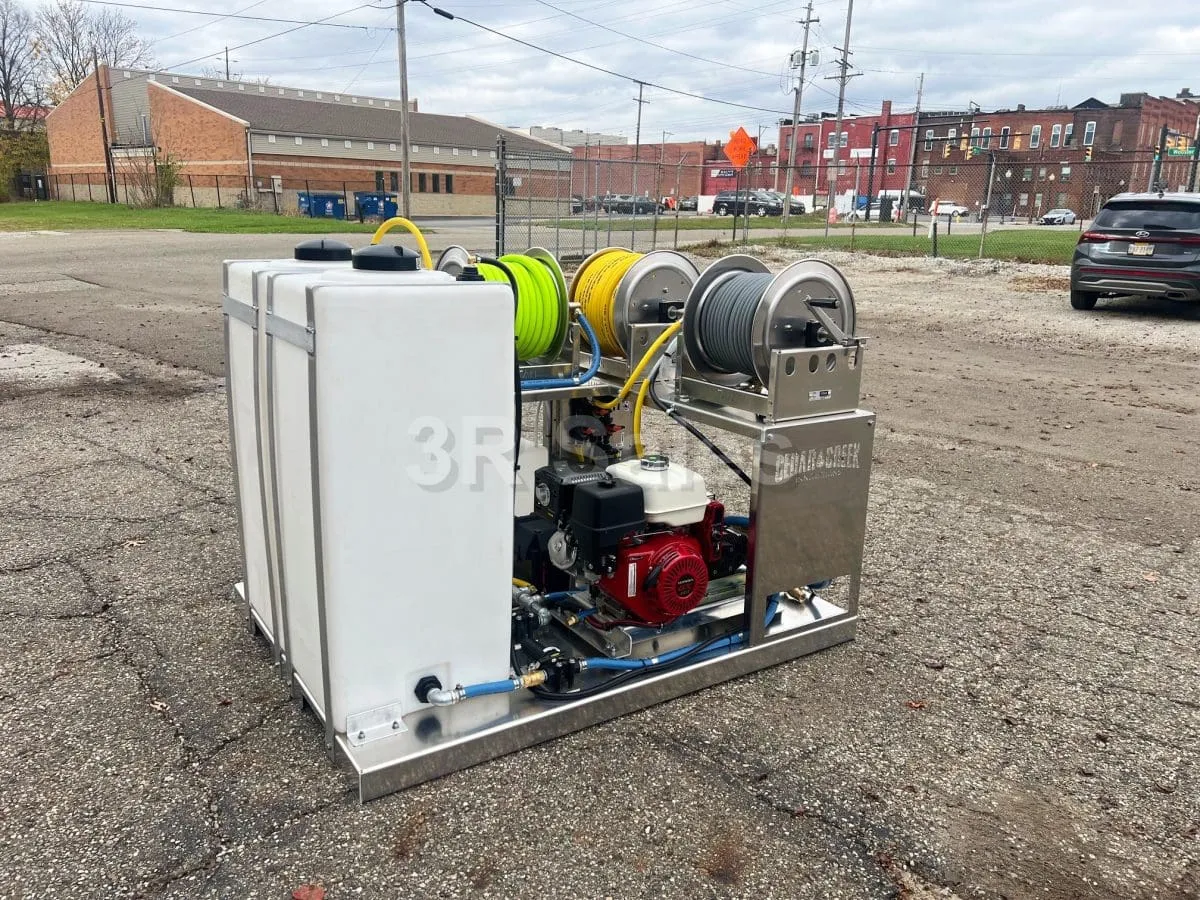

Florida KRAKEN: Ready Made 5.5′ Deluxe Truck Bed Skid – 3000 PSI, 5.5 GPM Washer, 100 PSI, 7 GPM 12v Soft Wash System

Description

Pressure Washer:

• 3000 PSI, 5 GPM Cold Water Pressure Washer
  • Belt Drive Comet Pump Triplex Plunger Pump
  • Honda GX390 Engine
    • Electric Start
  • External Unloader
  • Thermal Relief
  • Skid Frame w/Rubber Isolators
  • 36″ Wand Assembly with Quick Connect Fittings
  • Trigger Gun w/ Safety Lock-Off
  • 0°, 15°, 25°, 40° Color Coded Quick Connect Spray Nozzles
• Cool Bypass System for Pressure Washer – protects the pressure washer pump from overheating when trigger is released
• Downstream Soap Injection for the Pressure Washer – Low pressure soap application with an adjustable soap draw up to a 20% ratio.  When spraying soap with your pressure washer, the soap injector does all the diluting for you.  Injector is activated when using the provided low pressure quick connect soap nozzle provided.

Soft Wash System:

• 100 PSI, 7 GPM Remco Diaphragm Pump
• 200′ x 1/2″ of Yellow Soft Wash Hose – Max 600 PSI
• Remco Accumulator Tank
• On/Off Toggle Switch
• *Deep Cycle Battery & Battery Box
• NOCO Battery Charger & Battery Tender
• 55 Gallon Bleach Tank -with custom fabricated, heavy-duty hold-down bands
• Poly Gun/Wand Assembly with Quick Connecting Stainless Steel JROD with 0°, 15°, 25°, 40° Spray Nozzles
• Dipstick Assembly : used for drawing chemical into soft wash system, for rinsing your soft wash by dropping dipstick into water tank, and for transferring chemicals.
• Soft Wash Proportioner
  • Solid Heavy Duty Manifold
  • Chemical Resistant Bleach Metering Valve
  • Water Metering Valve
  • Surfactant Metering Valve
  • Includes: 7 Gal surfactant tank, hardware, plumbing, and installation

Skid Package:

• Skid:
  • 5.5’L x 48″W Heavy Duty Deluxe Aluminum Skid
  • Heavy Duty Aluminum Hose Reel Table
• Water Tank:
  • 55 Gallon Vertical Tank – with fabricated hold down bands
  • Tank Overflow Valve – 3/4″ water fill – stop water flow when tank is full and will continue to fill when water level drops
  • Tank Drain – 3/4″ drain hose with ball valve that drains to rear of truck
  • Heavy Duty Tank Filter
• Inlet Reel – Titan 3/4″ x 100′ Max – Aluminum 12″ Barrel – 1/2″ Swivel
  • Comes with 100′ x 3/4″ Flexzilla inlet hose installed on reel
  • 1″ Manifold
• Pressure Washer Reel – Titan 3/8″ x 300′ Max – Aluminum 12″ Barrel – 1/2″ Swivel – Stainless Steel Manifold
  • Comes with the 200′ x 3/8″ gray hose installed on reel
• Soft Wash Reel – Titan 3/8″ x 300′ Max – Aluminum 12″ Barrel – 1/2″ Swivel – Stainless Steel Manifold
  • Comes with the 200′ x 3/8″ gray hose installed on reel
• Installation – installation of above components on deluxe aluminum skid, including labor, additional plumbing, hardware, & fittings
• Training – Operations, winterization, and safety & maintenance training provided at pick up.  Typically takes 30-90 minutes depending on the complexity of your build
• Dimensions: 63.5″L x 48″W x 49″H*
• Dry Weight: 563lbs*

Add On Options:

• Add 19″ Surface Cleaner – Whisper Wash 19″ Yellow Hydro Flow Classic Surface Cleaner.  2 Stainless Steel Tips.
• Add Ball Valve Assembly – 5000 PSI Stainless Steel Ball Valve – allows you to switch between spray wand and surface cleaner without having to turn off your pressure washer.
• Add Aluminator Assembly
• Add Downstream Manifold – Choose between 3 different soap options or mix up to three soaps to draw through your pressure washer soap injector.   Ideal if you want to mix bleach with surfactant through your injector.  Includes installation.

*Battery not included if assembly is being shipped- you will need a deep cycle battery.

**Installation of the assembly into your vehicle is not included.  Please contact us at 330-753-8394 for pricing on this service.

****Lead times may vary.  Please call our office for the most accurate production time  330-753-8394.

***Weights and overall dimensions are subject to change.  For questions, please contact the office at 330-753-8394.
