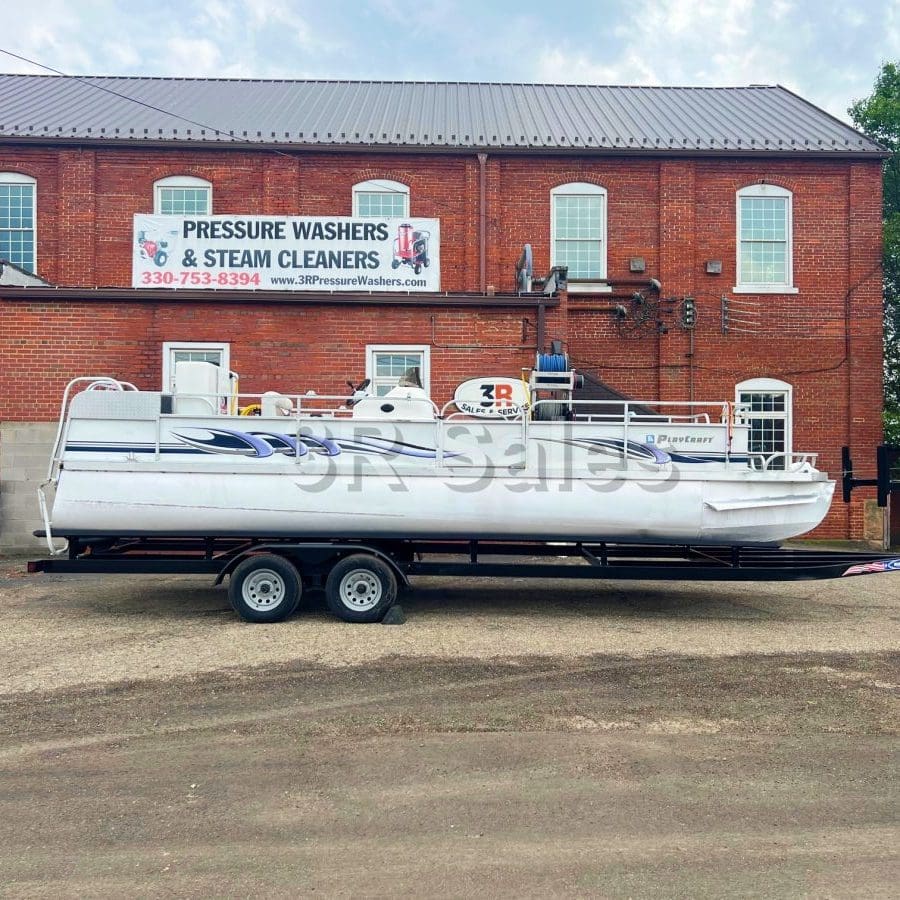

CROCODILE: Customizable 20′ Pontoon Boat – 3500 PSI, 8 GPM Cold Water, 12v Soft Wash System

Description

Please note for this install that a handful of this equipment was transferred from an existing rig of the customers to their boat.  In the case that we put another install together like this, this listing is the all-new equipment we’d use to duplicate this order, and the cost.  This does not include the cost of the boat or it’s appropriate trailer, which is not provided by 3R.  Cost of installation may vary after inspection of the boat provided by the customer.

Cold Water Pressure Washer:

• 3500 PSI, 8 GPM
• Honda GX690 Gas Engine with Electric Start
• Belt Drive General Pump Industrial Series Triplex Pump
• Powder Coated Skid Frame
• Battery Cables
• External Unloader & Thermal Relief Valve
• Downstream Soap Injection
• Bleeder Valve/Pump Primer
• 11 Gallon Aluminum Fuel Tank

12V Soft Wash System:

• 100 PSI, 7 GPM Remco Diaphragm Pump
• 200′ x 1/2″ of Yellow Soft Wash Hose – Max 600 PSI
• Remco Accumulator Tank
• On/Off Toggle Switch
• *Deep Cycle Battery & Battery Box
• NOCO Battery Charger & Battery Tender
• 55 Gallon Detergent Tank -with custom fabricated, heavy-duty hold-down bands
• Poly Gun/Wand Assembly with Quick Connecting Stainless Steel JROD with 0°, 15°, 25°, 40° Spray Nozzles
• Dipstick Assembly : used for drawing chemical into soft wash system, for rinsing your soft wash by dropping dipstick into water tank, and for transferring chemicals.
• Soft Wash Proportioner:
  • Solid Heavy Duty Manifold
  • Chemical Resistant Bleach Metering Valve
  • Water Metering Valve
  • Surfactant Metering Valve
  • Includes: 7 Gal surfactant tank, hardware, plumbing, and installation
• All Mounted On 24’x24′ Aluminum Diamond Plate Panel

Install Package:

• 100 Gallon Water Tank
  • Tank Overflow Valve – 3/4″ water fill – stop water flow when tank is full and will continue to fill when water level drops
  • 2″ Tank Drain
  • Heavy Duty Water Tank Filter – to help keep debris out of your equipment
  • Heavy Duty Hold-Down Bands
• Cool Bypass System for Pressure Washer – protects the pressure washer pump from overheating when trigger is released.
• Titan Aluminum High Pressure Hose Reel – Hand Crank
  • 1/2″ Stainless Steel Manifold
  • Holds max of 400′ of 3/8″ hose
  • 200′ High Pressure Hose, Gray, 1WB, 4200 PSI
  • Includes Locking Pin
  • Quick Connect Fitting Installed On Reel: to secure hose while in-transit
• Titan Aluminum Inlet Hose Reel – Hand Crank
  • Stainless Steel Manifold
  • Holds max of 150′ of 3/4″ hose
  • 100′ Flexzilla Inlet Hose
  • Includes Locking Pin
  • Quick Connect Fitting Installed On Reel: to secure hose while in-transit
• Titan Aluminum Soft Wash Hose Reel (For 12v System) – Hand Crank
  • Stainless Steel Manifold
  • Holds max of 300′ x 1/2″ hose
  • Includes 200′ x 1/2″, 600 PSI yellow soft wash hose
  • Includes Locking Pin
• (2) Titan Stack Brackets & Additional Custom Fabricated Supports
• Transfer Pump System – for transferring chemicals onboard or offboard.
• 7 Gallon Soap Tank
• 16 Gallon Soap Tank
• Heavy Duty Water Tank Filters – for easy cleanout and maintenance
• Chemical Resistant Flooring – Grey diamond plate texture: protects against moisture and corrosive SH
• Stainless Steel 6000 PSI Ball Valve Assembly

Check out the video of this boat install we did below!
