Name: COACHWHIP: Customizable 16' Chevy Box Truck - (2) 3500 PSI, 10 GPM Cold Water Washers, 300 PSI, 11 GPM Gas Soft Wash, RO/DI Window Cleaning System
SKU: 3RCOACHWHIPCUSTOM
Availability: BackOrder

Description

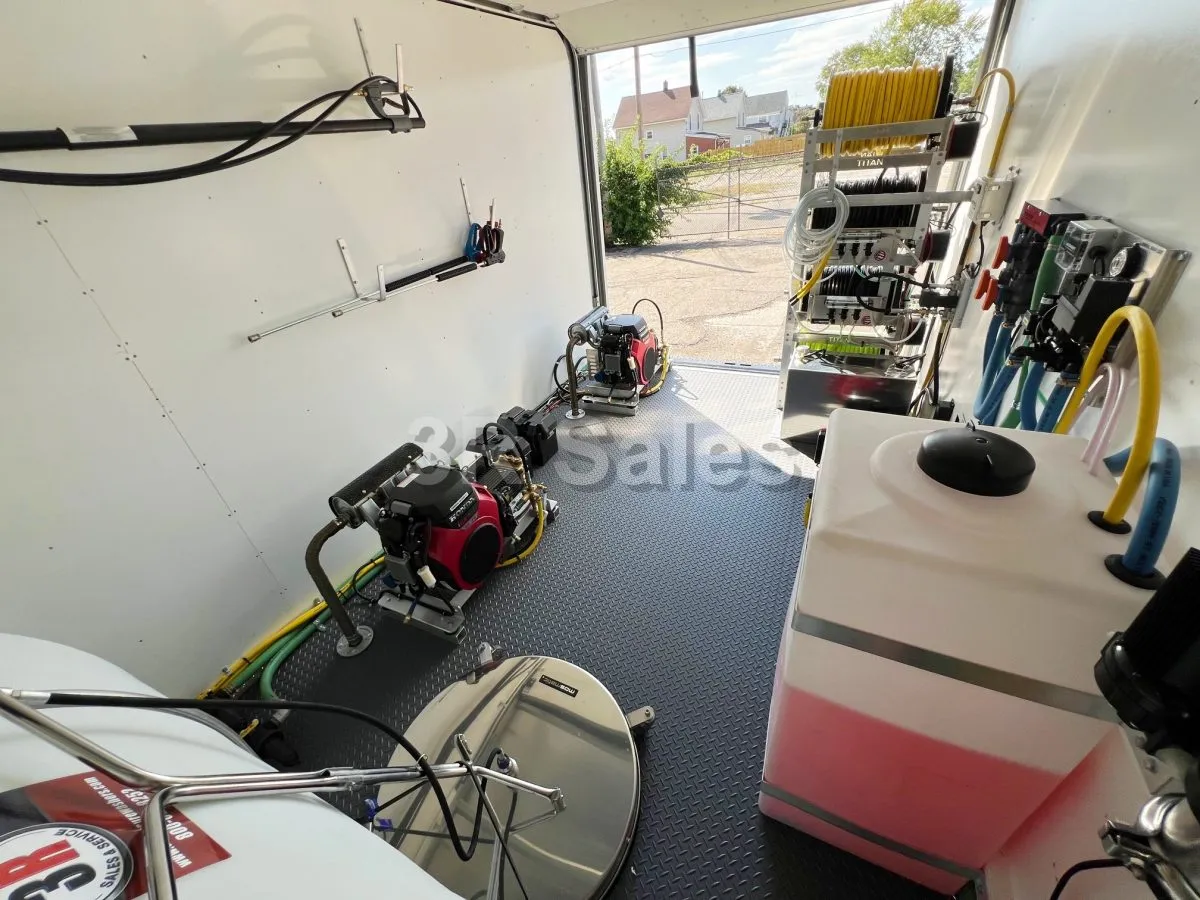

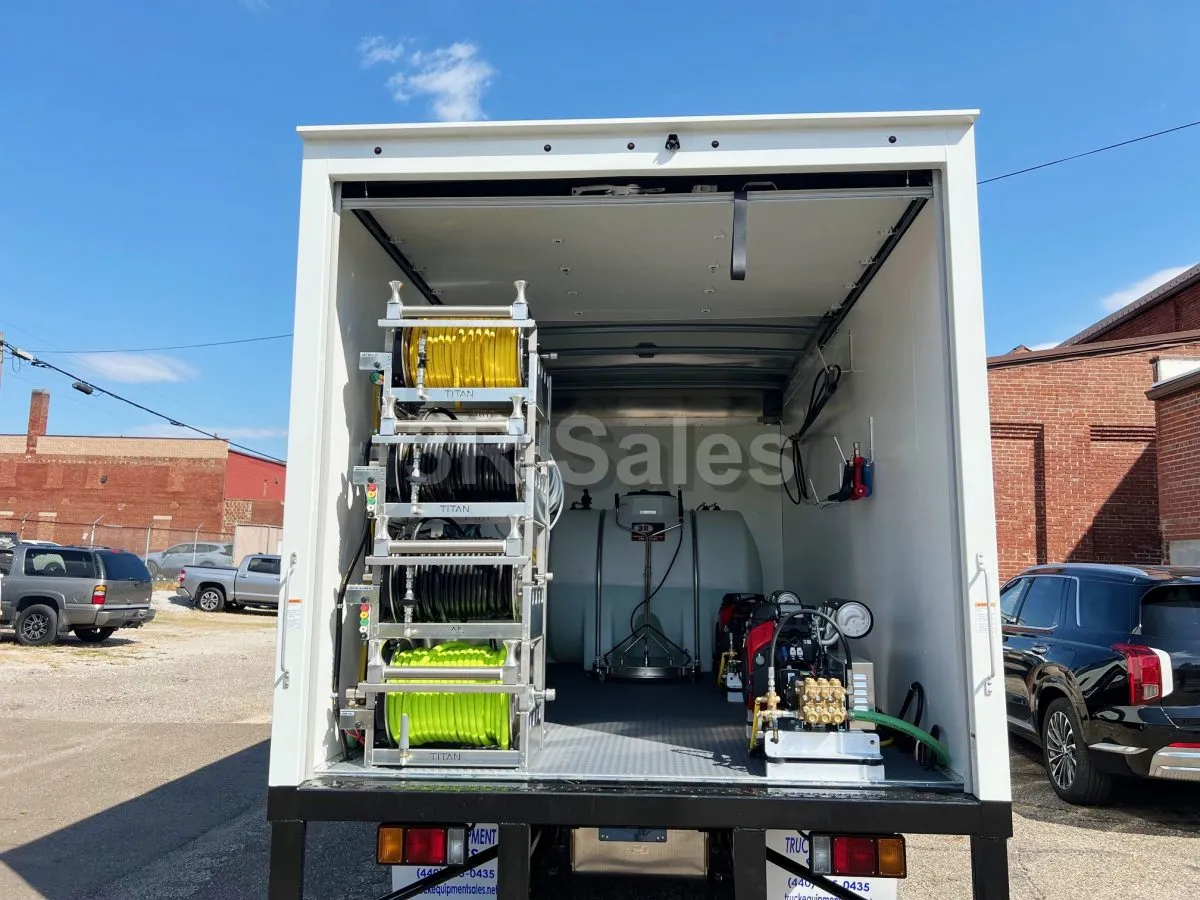

**This equipment was installed in a 2024 Chevy 16′ Box Truck. Vehicles are to be supplied by the customer – 3R does not offer the option to purchase vans and/or box trucks through us. If you’re looking for a custom install in a different style or model vehicle, please reach out to us via our contact form or through email and we’d be happy to get you an accurate quote for your available vehicle!

Pressure Washers

Two Cold Water Pressure Washers:
- 3500 PSI, 10 GPM
- Honda iGX800 V-Twin Fuel Injected Gas Engine
  - Electronic Fuel Injection
  - Electric STR Governor
  - Drive-by-Wire Control
  - Genuine OEM Honda Muffler
  - High Capacity Charge System
  - Premium Regulator/Rectifier
  - Oil Alert
  - LED Diagnostic Indicator
- Industrial Duty Belt Driven General (GP) TSF Series Triplex Plunger Pump
- Block Mounted High-Flow Pressure Valve
- Thermal Relief Valve
- Ultra Rugged Corrosion Resistant Extruded Aluminum Frame
- Easy Access Two Piece Aluminum Belt Guard
- 4-Groove Bandit Belt for uniform tension & maximum power transfer
- Easy Engine & Pump Oil Drain System
- Quad Anti-Vibration Rubber Isolators

Soft Wash System

Gas Engine Soft Wash System:
- 300 PSI, 11 GPM
- Electric Start 6.5hp Honda GX160 OR GX200 Engine
- High Volume Comet P40 Diaphragm Pump
- Gear Driven
- Bolt-On Regulator
- Pressure Gauge (on soft wash hose reel)
- Heavy Duty Aluminum Skid Frame
- Red Wash Down Gun
Proportioner Systems for Soft Wash:
- Pull water, surfactant, and sodium hypochlorite (bleach) without the need for batch mixing
- Easily change solution ratios
- Hi-Flow metering valves: no stress on pump and greater spray distance
- Second soap valve optional, but not included
- Flush Valve for rinsing corrosive chemicals from system
- Includes 7 Gallon Surfactant Tank

Tucker RO/DI Window Cleaning Water Fed Pole System

Powder coated aluminum panel.
(4) Stainless Steel Filter Housings, fittings, plumbing, bypass valve, I/O Ports (3/4 GHT).
21” Carbon/Sediment pre-filter, (2) 21” RO Membranes, and a 21” DI post-filter.
5.3GPM Adjustable 110v Rotary Vein pump w/ 1/2hp Motor. Regulated to 150psi MAX. Waterproof on/off switch OR battery powered 12v pump.
6′ 12AWG power cord w/ 15amp waterproof GFCI. Test and Reset buttons.
Dual Probe TDS meter. Measures RO product water and final Deionized product water.
50′ High Modulus Window Washing Pole
Hand-Carry Hose Reel
- with 150′ x 3/8″ hose

Install Package

Cool Bypass System for Pressure Washers:
- protects the pressure washer pumps from overheating when trigger is released.
Bleeder Valve / Pump Primer for each pressure washer:
525 Gallon Water Tank
- Heavy Duty Hold Down Bands
- Tank Overflow Valve – 3/4″ water fill – stop water flow when tank is full and will continue to fill when water level drops
- Tank Drain – 2″ Tank drain that drains to passenger side of the truck
55 Gallon Bleach Tank
Titan 18″ Electric Rewind Aluminum High Pressure Hose Reel (Pressure Washer 1)
- 1/2″ Stainless Steel Manifold
- Premium Hose Guides
- Holds max of 200′ of 1/2″ high pressure hose
- 200′ x 1/2″ High Pressure Hose, Black
- Includes Locking Pin
- Quick Connect Fitting Installed On Reel: to secure hose while in-transit
- Stainless Steel Ball Valve: for easily switching between accessories
Titan 18″ Electric Rewind Aluminum High Pressure Hose Reel (Pressure Washer 2)
- 1/2″ Stainless Steel Manifold
- Premium Hose Guides
- Holds max of 200′ of 1/2″ high pressure hose
- 200′ x 1/2″ High Pressure Hose, Black
- Includes Locking Pin
- Quick Connect Fitting Installed On Reel: to secure hose while in-transit
- Stainless Steel Ball Valve: for easily switching between accessories
Titan 18″ Electric Rewind Aluminum Inlet Hose Reel (Inlet Reel)
- 1″ Manifold
- Holds max of 200′ of 3/4″ hose
- 200′ Flexzilla Inlet Hose
- Includes Locking Pin
- Fitting Installed On Reel: to secure hose while in-transit
Titan 18″ Electric Rewind Aluminum Soft Wash Hose Reel (Soft Wash):
- 1/2″ Stainless Steel Manifold
- Premium Hose Guides
- Holds max of 300′ x 1/2″ hose
- Includes 300′ x 1/2″, 600 PSI yellow soft wash hose
- Includes Locking Pin
- Quick Connect Fitting Installed On Reel: to secure hose while in-transit
- Pressure Gauge for Soft Wash Installed on Reel: for easy curbside access
Downstream Soap Injection (for both pressure washers): Includes stainless steel injectors
(2) Downstream Manifolds for Pressure Washers – Pull up to three different soaps or chemicals using your downstream soap injector through the pressure washer. Each soap/chemical line plumbed with a ball valve to regulate which items you want to draw or have turned off.
Remote Rinse Systems for Gas Engine Soft Wash:
- From a distance, you can flush out your soft wash system completely, or switch from pulling SH to water with the push of a button!
Remote Engine On/Off: Allows user to turn soft wash engine On/Off without having to walk back to truck
Flow Pro Remote Chemical Injector Bypass: with the touch of a button, you can bypass your chemical injector completely, offering full flow through your pressure washer! (installed on Pressure Washer #1)
Heavy Duty T-Strainer Water Filters:
- 1 Filters Pre-Water Tank
- 1 Filter Pre-Soft Wash Pump
- 2 Filters Pre-Pressure Washer Pumps
22 Gallon Aluminum Fuel Tank
- with gauge
Chemical Resistant Protective Flooring: Protects wood floor of trailer from water & harsh chemicals. Slip Resistant. Gray Diamond plate pattern. A 3R exclusive!
Painted Interior Walls & Doors: Bright White Gloss
Wall Hooks & Hardware for Securing Wands
Mosmatic Gun Swivels (for both pressure washing wands)
Installation – installation of above components into pictured van, including labor, additional plumbing, hardware, & fittings
Training – Operations, winterization, and safety & maintenance training provided at pick up. Typically takes 30-90 minutes depending on the complexity of your build

Add-On Options:

**If you plan to finance a trailer unit or machinery, final transactions for those items must take place with a 3R associate, pending approval of your application. All website transactions must be paid in full at checkout. If you have any questions about the financing process or timelines, please call us at 330-753-8394 or at 800-824-8252. Thank you!
