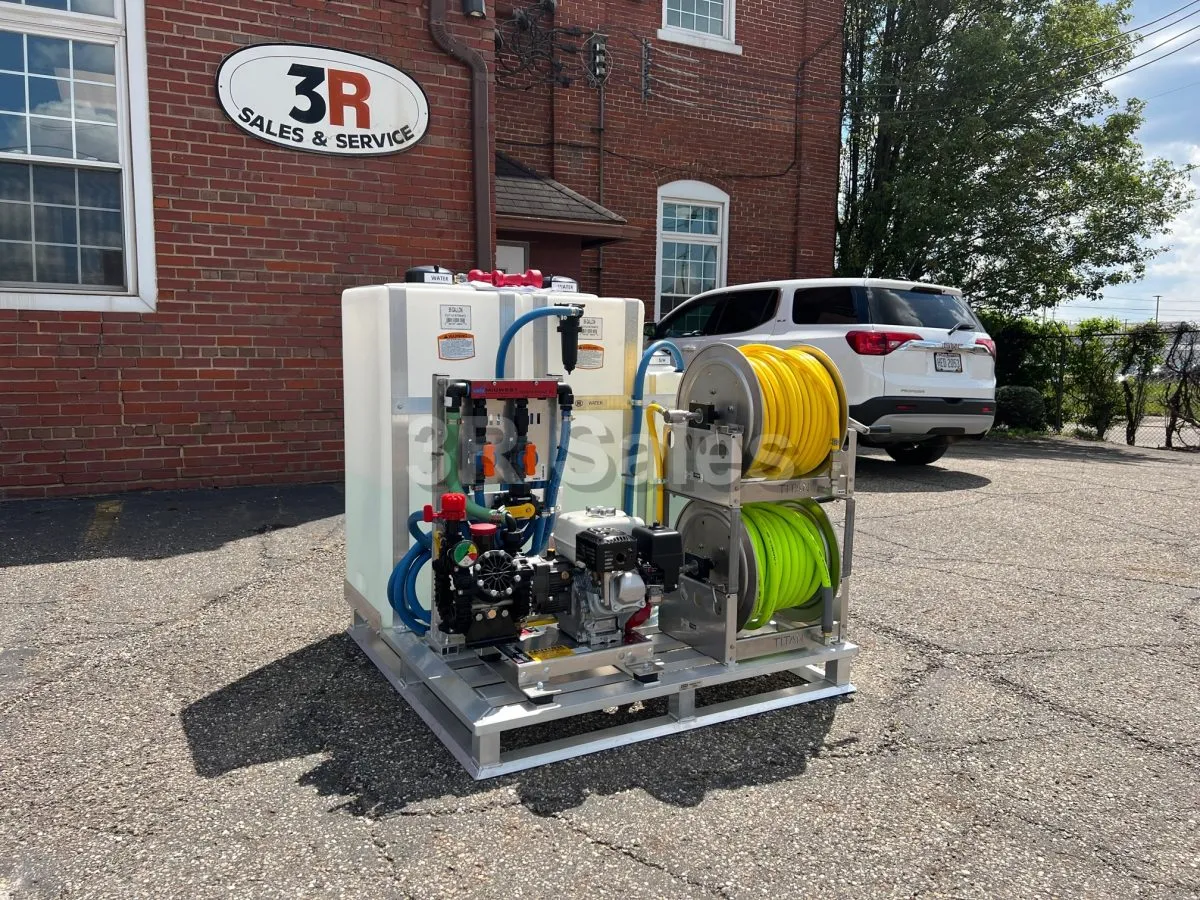

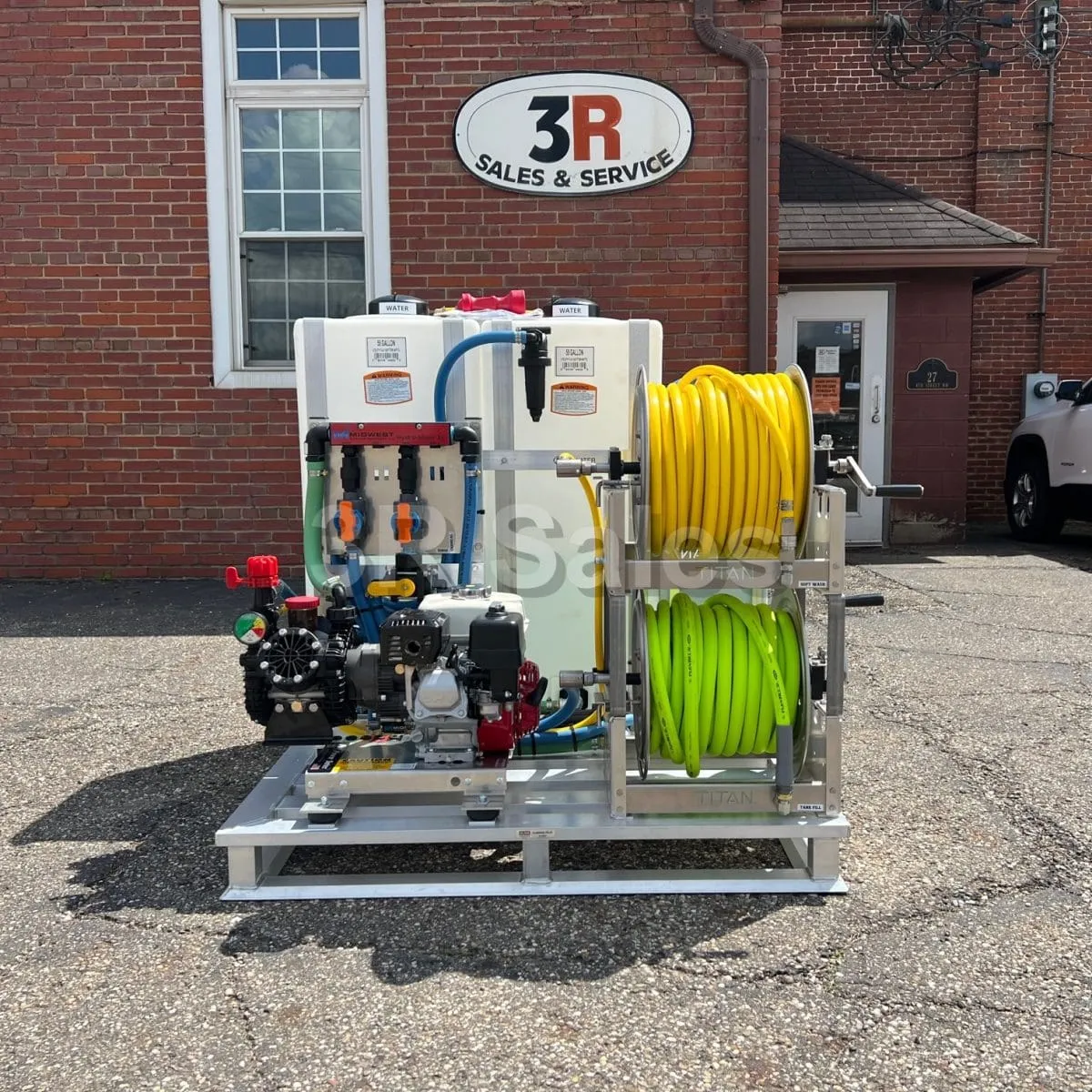

HERRON: Customizable 48″ x 48″ Aluminum Pallet Assembly – 300 PSI, 10 GPM Gas Engine Soft Wash – With Proportioner Manifold

HERRON: Customizable 48″ x 48″ Aluminum Pallet Assembly – 300 PSI, 10 GPM Gas Engine Soft Wash – With Proportioner Manifold

HERRON: Customizable 48″ x 48″ Aluminum Pallet Assembly – 300 PSI, 10 GPM Gas Engine Soft Wash – With Proportioner Manifold

$11,134.00

Available to Order - call for current lead time

Description

The options are endless with these Aluminum Pallet Assemblies!  Great for installation in truck beds, vans, flatbeds, and more, these skid assemblies help minimize the amount of products being secured directly into your vehicle, and make a great use of space.  Another bonus is the entire base is constructed of chemical-resistant aluminum, helping to extend the life of the assembly.  These are an excellent option for those who want a compact set-up for getting into congested areas, someone who doesn’t want to pull a trailer, serving as an secondary or backup system,  or for someone who wants a system that can be easily moved from vehicles down the road.

Included in the Package:

  •  48″x48″ Aluminum Pallet Base
    • 4-way Fork Access for Easy Installation
  • Gas Engine Soft Wash Skid:
    • 300 PSI, 11 GPM
    • 6.5hp Honda GX200 Gas Engine
    • Corrosion Resistant Aluminum Frame
    • Anti-Vibration Rubber Isolators
    • Engine Oil Drain Hose
    • AR45 Diaphragm Pump
      • 300 PSI, 10 GPM
      • 6.5hp Honda GX200 Engine
      • High Volume AR Diaphragm Pump
      • Gear Driven
      • Bolt-On Regulator
      • Pressure Gauge
    • Soft Wash Proportioner:
      • Solid Heavy Duty Manifold
      • Chemical Resistant Bleach Metering Valve
      • Water Metering Valve
    • (2) 55 Gallon Tanks – tied together to hold 110 gallons of water
      • Tank Overflow Valve – 3/4″ water fill – stop water flow when tank is full and will continue to fill when water level drops
      • Heavy Duty Water Tank Filter
      • Heavy Duty Fabricated Bands
      • 3/4″ Tank Drain with Ball Valve
    • 20 Gallon Bleach Tank
      • Heavy Duty Fabricated Bands
    • Aluminum Hose Reels – Stacked with Stainless Steel Stack Bracket:
      • Soft Wash Reel – Titan 1/2″ x 200′ Max – Aluminum Construction, Stainless Steel Manifold,  12″ PVC Barrel – 1/2″ Swivel
        • Comes with 200′ x 1/2″ yellow soft wash hose installed on reel
        • Quick Connect Fitting Installed On Reel: to secure hose while in-transit
        • Includes Locking Pin
        • Pressure Gauge for Soft Wash Line
      • Inlet Reel – Titan 3/4″ x 100′ Max – Aluminum Construction, 1″ Iron Manifold,  12″ PVC Barrel – 1″ Swivel
        • Larger Manifold for Quick Filling of the Water Tank
        • Comes with the 100′ x 3/4″ Flexzilla hose installed on reel
        • Quick Connect Fitting Installed On Reel: to secure hose while in-transit
        • Includes Locking Pin
      • Titan Stainless Steel Stack Bracket
    • Red Wash Down Gun

*Approximate Dimensions: 53.5″W x 48″L x 52″H (this is with hose reel handles attached. If hose reel handles are removed, width is 49″)



Benefits of This Package:

  • Hose Reels:
    • Highly sought after Titan hose reels
    • Full aluminum frames with stainless steel manifolds for the ultimate corrosion resistance
    • Heavy duty swivels installed on each reel
  • Soft Wash System:
    • Provides the ability to clean a roof safely at 100 PSI, 7 GPM
    • High performance Fatboy Remco Pump has the highest output of any on-demand 12V soft wash pump on the market (100 PSI, 7 GPM)
    • High Quality proportioner system allows for you to accurately meter the amount of water, surfactant, and SH you draw through your system
    • NOCO battery charger quickly charges your system and also serves as a battery tender/maintainer for periods of non-use.  Also has an easy-to-read display for the battery level.
    • Dipstick assembly allows for a fast & easy transfer of chemicals from one medium to another
  • Assembly:
    • Compact set-up
    • Easy to move in and out of vehicles
    • Only securing one piece of equipment to your vehicle versus several pieces
    • Aluminum pallet is corrosion resistant – extends the life of your build and adds to the aesthetics
    • Professional Assembly – with over 27 years of experience building mobile wash equipment, we can put together a compact, high-functioning, long-lasting rig that looks great, too!
    • All equipment is top-of-the-line commercial-grade equipment.  We don’t cut corners – we build rigs to last.
    • Custom fabricated bands and brackets give builds a high-functioning ability, and sleek look
  • Other Benefits:
    • These pallet assemblies can be shipped!
    • They have high profit potential – less time setting up and tearing down on a job site means more time available to book more jobs!



  1. Installation of the pallet assembly into your vehicle is not included.  Please contact us at 330-753-8394 for pricing on this service.  Service only available at our Barberton, OH location.
  2. Weights and overall dimensions are subject to change.  For questions, please contact the office at 330-753-8394.
  3. Lead times may vary– standard production of a custom skid unit takes one-two weeks.  Please call our office for the most accurate production time 330-753-8394.
  4. If you plan to finance a unit or machinery, final transactions for those items must take place with a 3R associate, pending approval of your application.  All website transactions must be paid in full at checkout.  If you have any questions about the financing process or timelines, please call us at 330-753-8394 or at 800-824-8252.  Thank you!
