CONNECT FOUR: Customizable (4) Aluminum Pallet Assembly Group – 3500 PSI, 8 GPM Hot Washer, 300 PSI, 11 GPM Gas Engine Soft Wash

Description

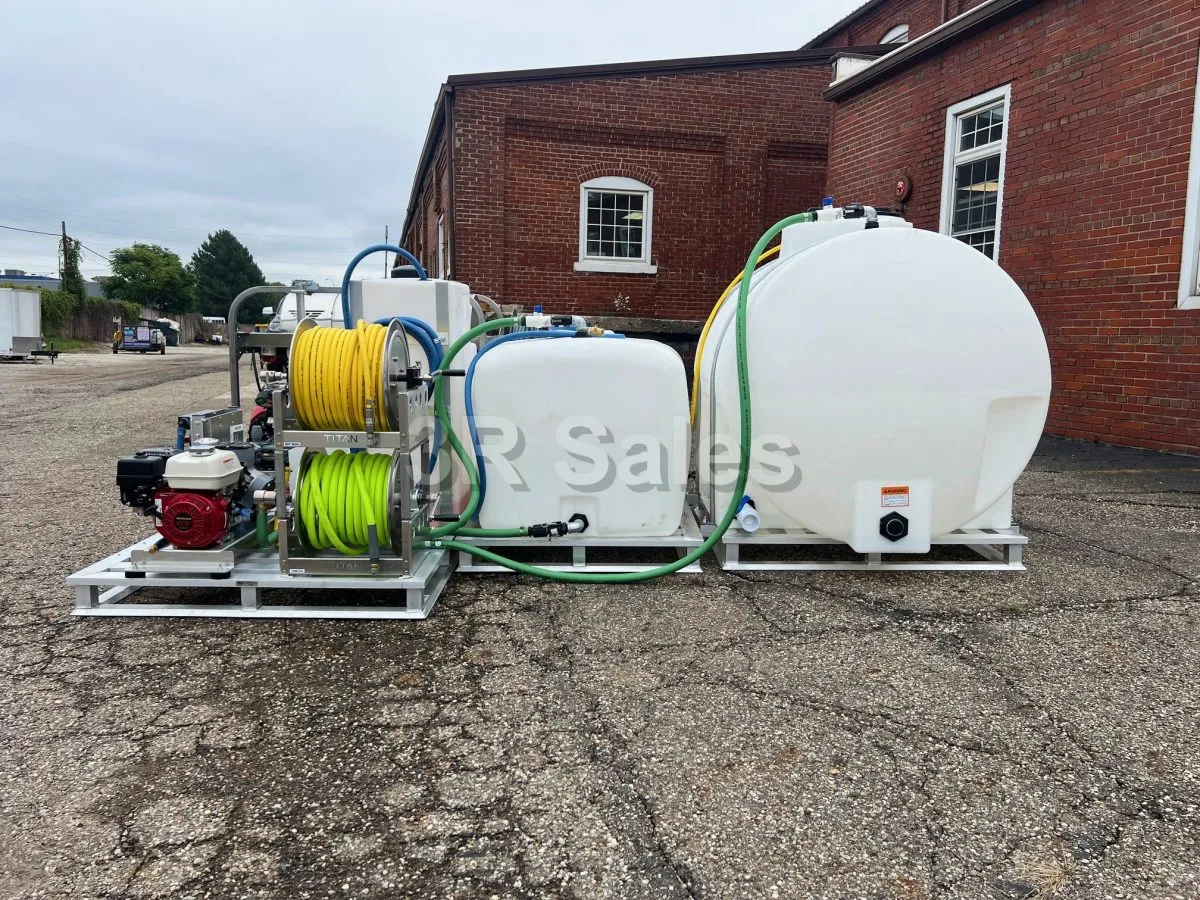

Check out our CONNECT FOUR package!  This modular system was put together for a customer who wanted to be able to use his pressure washing and soft washing equipment in a few seasons, and remove it for another so he could use the truck for transporting other items, and also carry a large amount of water since they don’t always have access to a water supply on site.  We made sure that the equipment was all installed on (4) aluminum 4’x4′ pallets with 4-way fork access to make it easy to put the equipment onto the flat bed they have, and to remove it.  We also made sure the connections were all quick connect or camlock to make the assembly and disassembly of the system quick and painless.

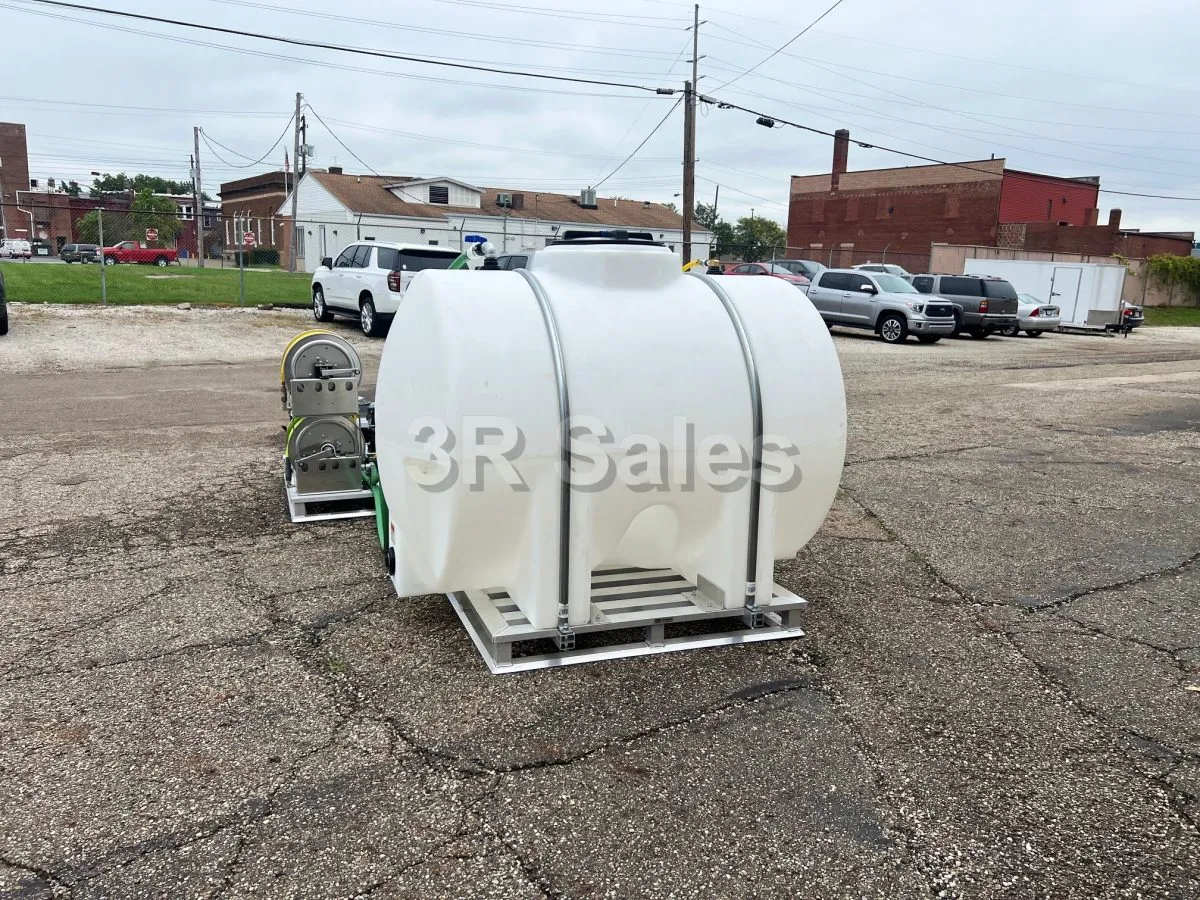

The 525 gallon water tank occupies one pallet and is the supply tank for the 8 GPM pressure washer.  The 200 gallon water tank occupies another pallet, and supplies the soft wash system.  The soft wash skid, bleach tank, surfactant tank, soft wash & inlet hose reels, and proportioner system occupy the third pallet.  Finally, the fourth pallet is occupied by the 8 GPM hot water washer, 20 gallon soap tank, soap injector, and the high pressure hose reel.  While this system can all be used together, you can also separate the pressure washer system (2 skids), and the soft wash system (other 2 skids) and use them independently on different trucks.

This CONNECT FOUR assembly can be modified to fit your needs, or we can do a completely customized system for you, too!  Please reach out to us with any questions you may have.

Aluminum Pallet #1:

• 48″x48″ Aluminum Pallet Base
  • 4-way Fork Access for Easy Installation
• 525 Gallon Water Tank – feeds the 8 GPM hot water pressure washer
  • Tank Overflow Valve – 3/4″ water fill – stop water flow when tank is full and will continue to fill when water level drops
  • Heavy Duty Water Tank Filter
  • Heavy Duty Hold-Down Bands
  • 2″ Tank Drain with ball valve

Aluminum Pallet #2:

• 48″x48″ Aluminum Pallet Base
  • 4-way Fork Access for Easy Installation
• 200 Gallon Water Tank – feeds the gas engine soft wash system
  • Tank Overflow Valve – 3/4″ water fill – stop water flow when tank is full and will continue to fill when water level drops
  • Heavy Duty Water Tank Filter
  • Heavy Duty Hold-Down Bands
  • 3/4″ tank drain with ball valve

Aluminum Pallet #3:

• 48″x48″ Aluminum Pallet Base
  • 4-way Fork Access for Easy Installation
• Gas Engine Soft Wash Skid:
  • 300 PSI, 11 GPM
  • 6.5hp Honda GX200 Gas Engine
  • Corrosion Resistant Aluminum Frame
  • Anti-Vibration Rubber Isolators
  • Engine Oil Drain Hose
  • Featuring the Comet P40 Pump
    • Chemical Resistant Wet Parts Compatible with Aggressive Soft Wash Chemicals
    • Single Piece Manifold For Reduced Leak Points & Quick Service
    • Increased Flow and Pressure (11 GPM @ 300 PSI)
    • Molded Inserts That Cannot Come Loose
    • Bolt-On Regulator – Prevent Leaks When Adjusting the Pressure Knob
    • Aluminum Head Plates To Prevent Flexing of the Heads
    • Metal Oil Cup For Impact Resistance
• Soft Wash Proportioner:
  • Solid Heavy Duty Manifold
  • Chemical Resistant Bleach Metering Valve
  • Water Metering Valve
  • Surfactant Metering Valve
  • Includes: 7 Gal surfactant tank, hardware, plumbing, and installation
• 55 Gallon Bleach Tank – with fabricated aluminum hold-down bands
• Aluminum Hose Reels – Stacked with Stainless Steel Stack Bracket:
  • Soft Wash Reel – Titan 1/2″ x 200′ Max – Aluminum Construction, Stainless Steel Manifold,  12″ PVC Barrel – 1/2″ Swivel
    • Comes with 200′ x 1/2″ yellow soft wash hose installed on reel
    • Quick Connect Fitting Installed On Reel: to secure hose while in-transit
    • Includes Locking Pin
    • Pressure Gauge for Soft Wash Line
  • Inlet Reel – Titan 3/4″ x 100′ Max – Aluminum Construction, Stainless Steel Manifold,  12″ PVC Barrel – 1/2″ Swivel
    • Comes with the 100′ x 3/4″ Flexzilla hose installed on reel
    • Quick Connect Fitting Installed On Reel: to secure hose while in-transit
    • Includes Locking Pin
• Red Wash Down Gun

Aluminum Pallet #4:

• Hydro Tek SC Series Hot Water Pressure Washer
  • 3500 PSI, 7.7 GPM
  • 22hp Honda GX690 Engine, Twin Cylinder – Electric Key Start
  • Belt Drive Triplex Plunger Pump – Heavy Duty T Series General Pump
  • On Board 2900Watt, 115V, Brushless Generator
  • EZ Align Belt Tensioning System: allows for easy, single bolt, belt tensioning adjustments.
  • Stainless Steel Frame, Coil Wrap & Panels: rugged & durable stainless steel offers corrosion resistance and protection of your valuable investment from the harshest environments.  Keeps you machine looking like new for years to come.
  • 115V Diesel Burner System
  • 532,000 BTU
  • Spiralast Coil: manufactured by Hydro Tek – Robotically fused 1/2″ schedule 80 steel pipe is cold rolled to protect the steel pipe from fatigue.  The coil is then surrounded by ceramic insulation and stainless enclosure with double-wall end caps.  Lifetime Coil Warranty.
  • 8 Gallon Gas and 15 Gallon Diesel Tanks: Heavy duty “roto-molded” rust free fuel tanks with fuel filter to protect against contaminated fuel. Safely refuel tanks away from hot engine. Extended run time with larger fuel capacity.
  • Adjustable Thermostat
  • Burst Disc Technology for Operator Safety
  • 250 Degree Steam Setting
• 150′ x 3/8″ Capacity Stainless Steel, Machine-Mounted Hose Reel
  • 100′ x 3/8″ 4200 PSI Gray Hose
• 20 Gallon Soap Tank
• 20% Adjustable Stainless Steel Downstream Soap Injection
• Cool Bypass Pump Protection: protects the pressure washer pump from overheating when trigger is released
• Bleeder Valve / Pump Primer – bleeds air out of incoming water hose for pressure washer, allowing for easy start-up & preventing pump damage
• Installation – installation of above components on aluminum pallets, including labor, additional plumbing, hardware, & fittings
• Training – Operations, winterization, and safety & maintenance training provided at pick up.  Typically takes 30-90 minutes depending on the complexity of your build

Add On or Upgrade Options: not shown in listing photos

• Upgrade to Electric Start Engine On Soft Wash System: with battery, battery box, and install
• Add Remote Rinse Valve for Gas Engine Soft Wash System: Allows user to turn to remotely switch bleach line to water for rinsing and to flush out bleach line, includes installation

1. Batteries not included if assembly is being shipped – we can advise the batteries needed if being shipped.
2. Installation of the pallet assembly into your vehicle is not included.  Please contact us at 330-753-8394 for pricing on this service.  Service only available at our Barberton, OH location.
3. Weights and overall dimensions are subject to change.  For questions, please contact the office at 330-753-8394.
4. Lead times may vary– standard production of a custom skid unit takes one-two weeks.  Please call our office for the most accurate production time 330-753-8394.
5. If you plan to finance a unit or machinery, final transactions for those items must take place with a 3R associate, pending approval of your application.  All website transactions must be paid in full at checkout.  If you have any questions about the financing process or timelines, please call us at 330-753-8394 or at 800-824-8252.  Thank you!
