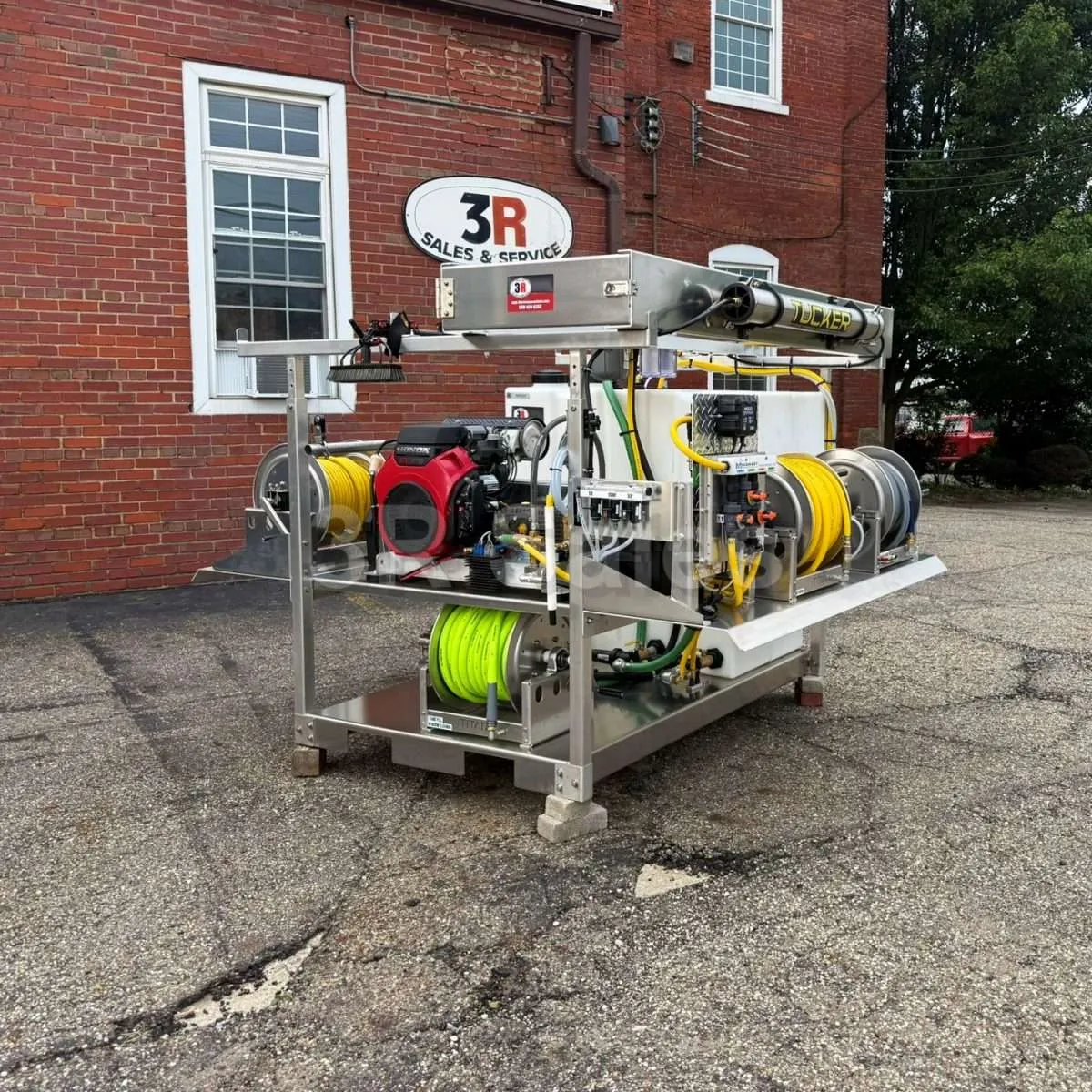

REAPER: Ready Made 6′ Deluxe Truck Bed Skid – 8 GPM Cold Water, 12V Soft Wash, RO/DI System

Description

Deluxe Truck Bed Skid:

• Dimensions:
  • 48″ W x 72″ L (6’ skid base)
  • Side Shelves are 19″ in depth with a 3″ curved lip
  • Fork Channels: 8″ Wide with 12″ between fork channels
  • Third Tailgate Shelf: 18″ D x 47 3/4″ W
• All Aluminum Construction for corrosion resistance
• Ladder Rack with Side Shelves is custom height adjustable and comes with rounded precision laser cut shelves with extreme duty bolt-on rounded support brackets & hardware.
• Built with the highest quality, USA produced aluminum and stainless hardened materials available to ensure many years of trouble free service & reliability.
• Includes Third Tailgate Shelf

Cold Water Pressure Washer:

• 3500 PSI, 8 GPM
• Honda GX690 Gas Engine
• Electric Start
• Heavy Duty General (GP) Triplex  Plunger Pump – TSF2021
• V-Belt Drive System
• External Unloader
• Thermal Relief Valve
• Upgraded Charging System
• Powder Coated Steel Skid Mounted
• Anti-Vibration Rubber Isolators
• 36″ Gun & Wand Assembly
• Cool Bypass Pump Protection: protects the pressure washer pump from overheating when trigger is released
• Bleeder Valve / Pump Primer – bleeds air out of incoming water hose for pressure washer, allowing for easy start-up & preventing pump damage

Soft Wash System:

• 100 PSI, 7 GPM Remco Diaphragm Pump
• 200′ x 1/2″ of Yellow Soft Wash Hose – Max 600 PSI
• Remco Accumulator Tank
• On/Off Toggle Switch
• *Deep Cycle Battery & Battery Box
• NOCO Battery Charger & Battery Tender
• 100 Gallon Bleach Tank
• Poly Gun/Wand Assembly with Quick Connecting Stainless Steel JROD with 0°, 15°, 25°, 40° Spray Nozzles
• Dipstick Assembly : used for drawing chemical into soft wash system, for rinsing your soft wash by dropping dipstick into water tank, and for transferring chemicals.
• Soft Wash Proportioner
  • Solid Heavy Duty Manifold
  • Chemical Resistant Bleach Metering Valve
  • Water Metering Valve
  • Surfactant Metering Valve
  • Includes: 7 Gal surfactant tank, hardware, plumbing, and installation

Install Package:

• 100 Gallon Water Tank
  • Tank Overflow Valve – 3/4″ water fill – stop water flow when tank is full and will continue to fill when water level drops
  • Tank Drain – 3/4″ drain hose with ball valve that drains to rear of truck
  • Heavy Duty Tank Filter
• 12V Electric Rewind Hose Reels
  • Inlet Hose Reel – Titan 3/4″ x 100′ Max – Aluminum 12″ Barrel – 1/2″ Swivel
    • Comes with 100′ x 3/4″ Flexzilla inlet hose installed on reel
  •  Pressure Washer Reel – Titan 3/8″ x 300′ Max – Aluminum 12″ Barrel – 1/2″ Swivel – Stainless Steel Manifold
    • Comes with the 200′ x 3/8″ gray hose installed on reel
  • Soft Wash Reel – Titan 1/2″ x 200′ Max – Aluminum 12″ Barrel – 1/2″ Swivel – Stainless Steel Manifold
    • 200′ x 1/2″ of Yellow Soft Wash Hose – Max 600 PSI
• Downstream Soap Injection – Includes 20% adjustable, stainless steel injector
• Surface Cleaner Mount – Installed on top of your deluxe skid assembly for convenient storage of your surface cleaner!
• Downstream Manifold – Pull up to three different soaps or chemicals using your downstream soap injector through the pressure washer. Each soap/chemical line plumbed with a ball valve to regulate which items you want to draw or have turned off.
• 11 Gallon Aluminum Fuel Tank – with fuel gauge
• Battery & Battery Box (Battery not included if shipped)
• Installation – installation of above components on deluxe aluminum skid, including labor, additional plumbing, hardware, & fittings
• Training – Operations, winterization, and safety & maintenance training provided at pick up.  Typically takes 30-90 minutes depending on the complexity of your build

**Installation of the assembly into your vehicle is not included.  Please contact us at 330-753-8394 for pricing on this service.

***Weights and overall dimensions are subject to change.  For questions, please contact the office at 330-753-8394.
