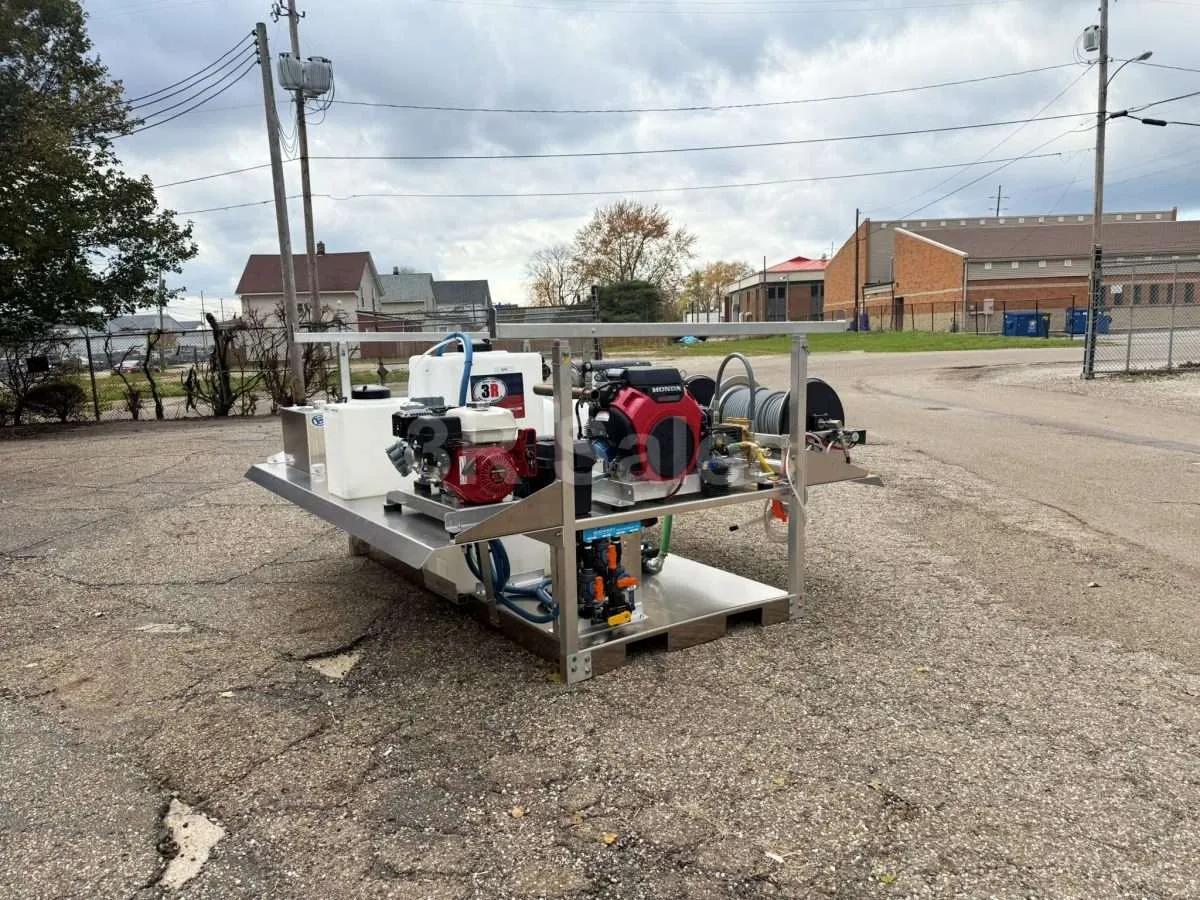

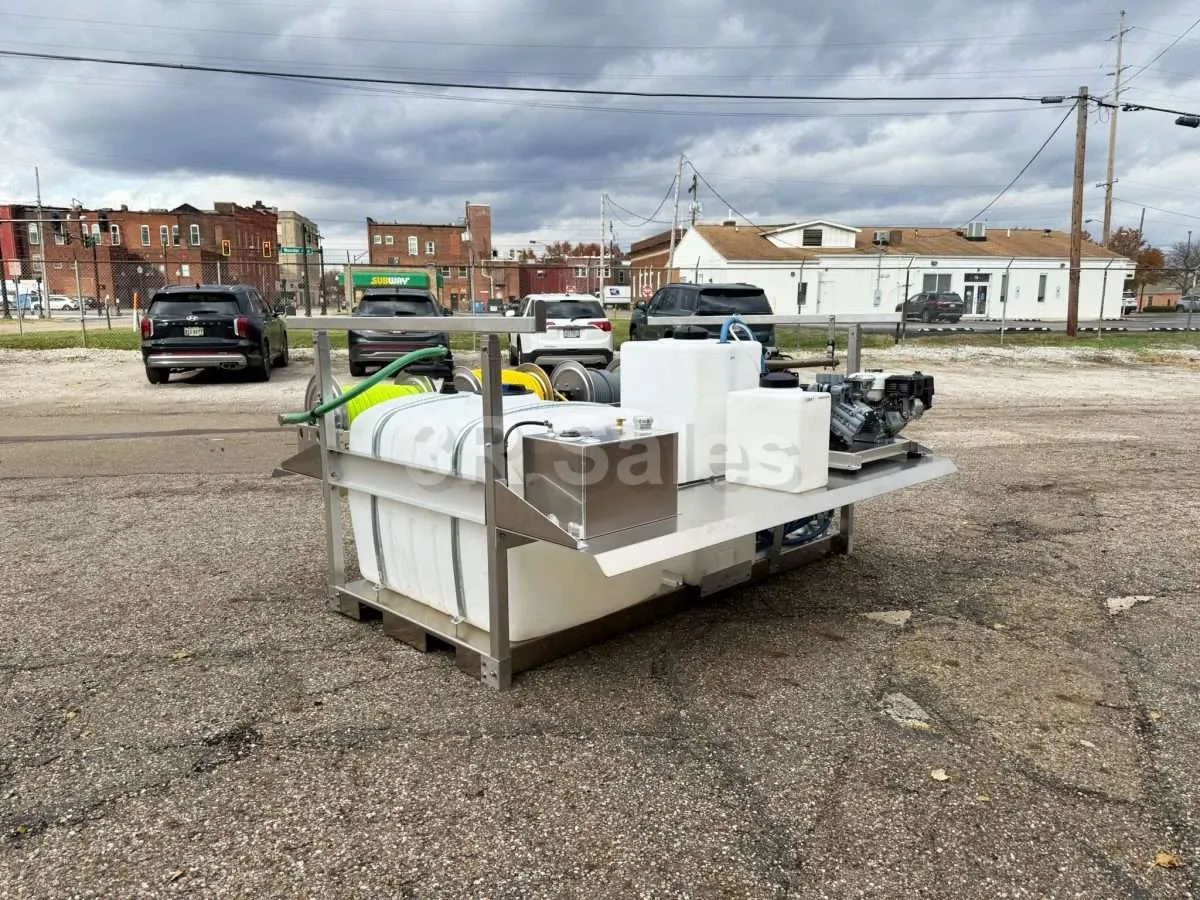

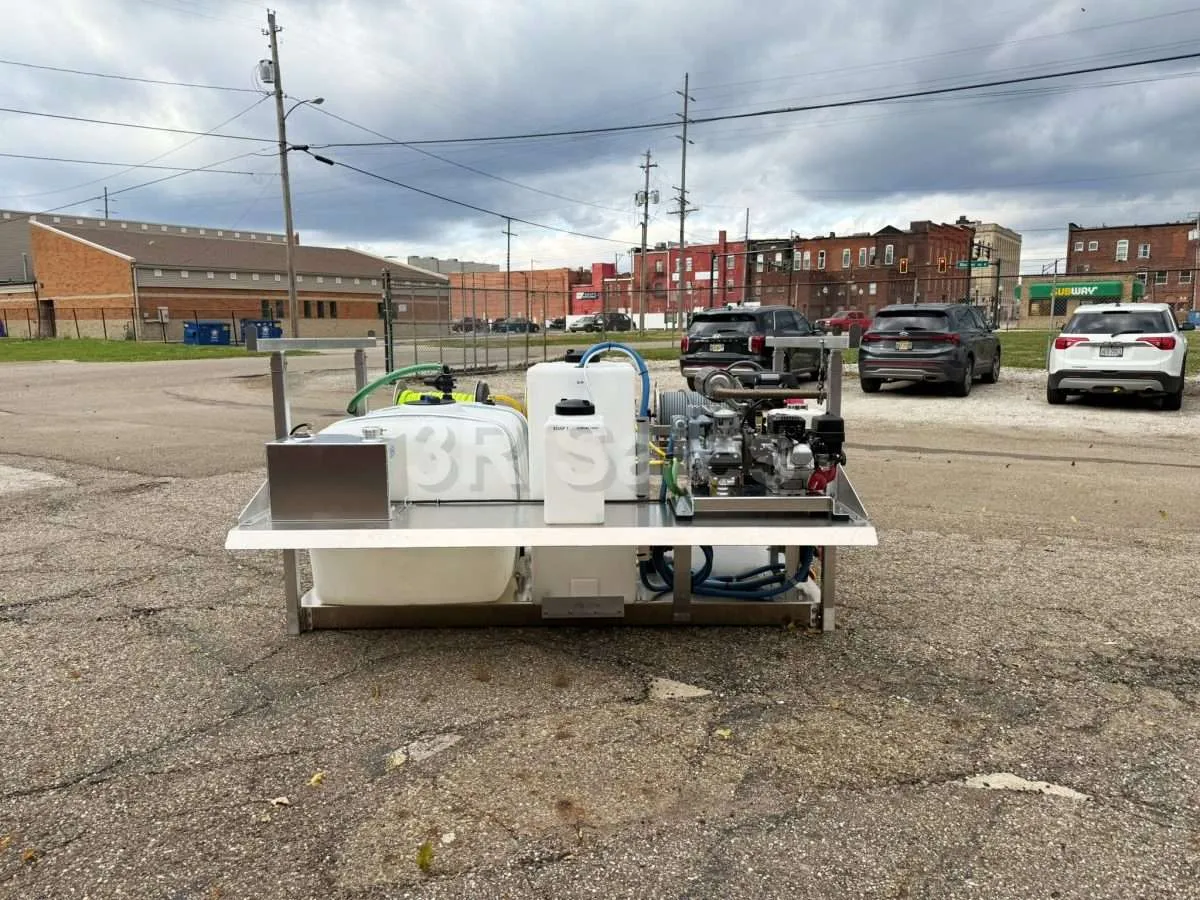

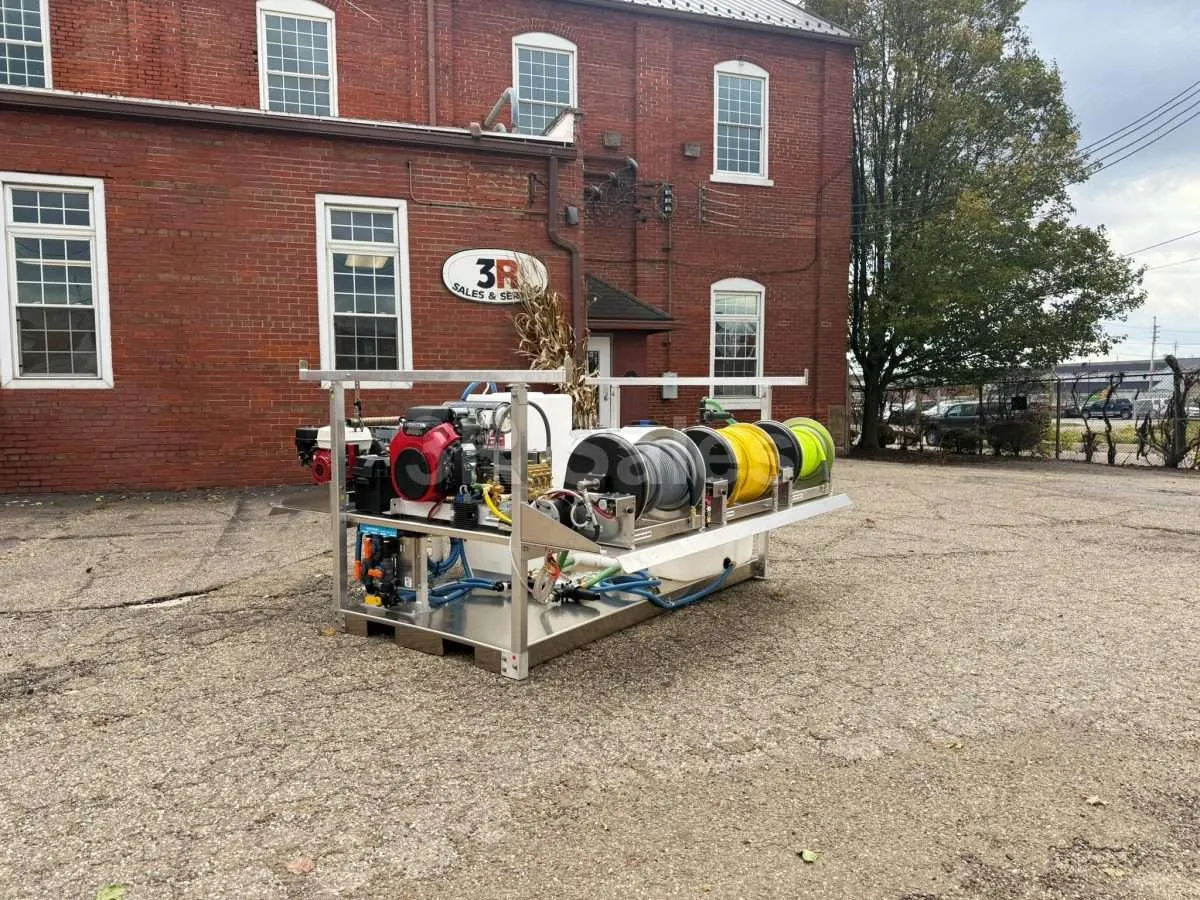

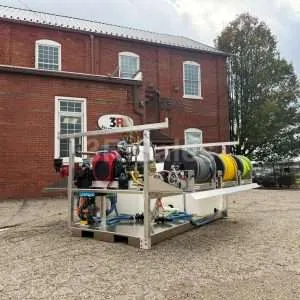

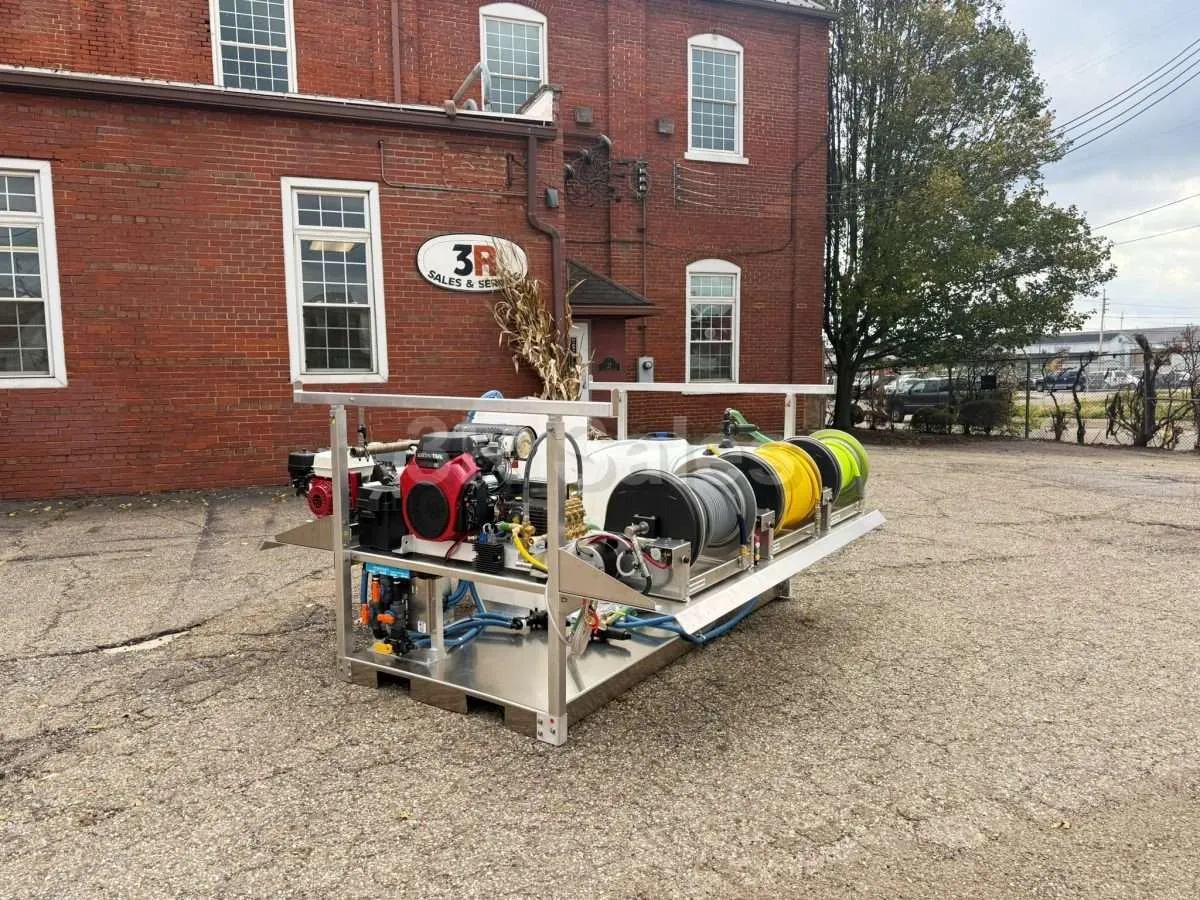

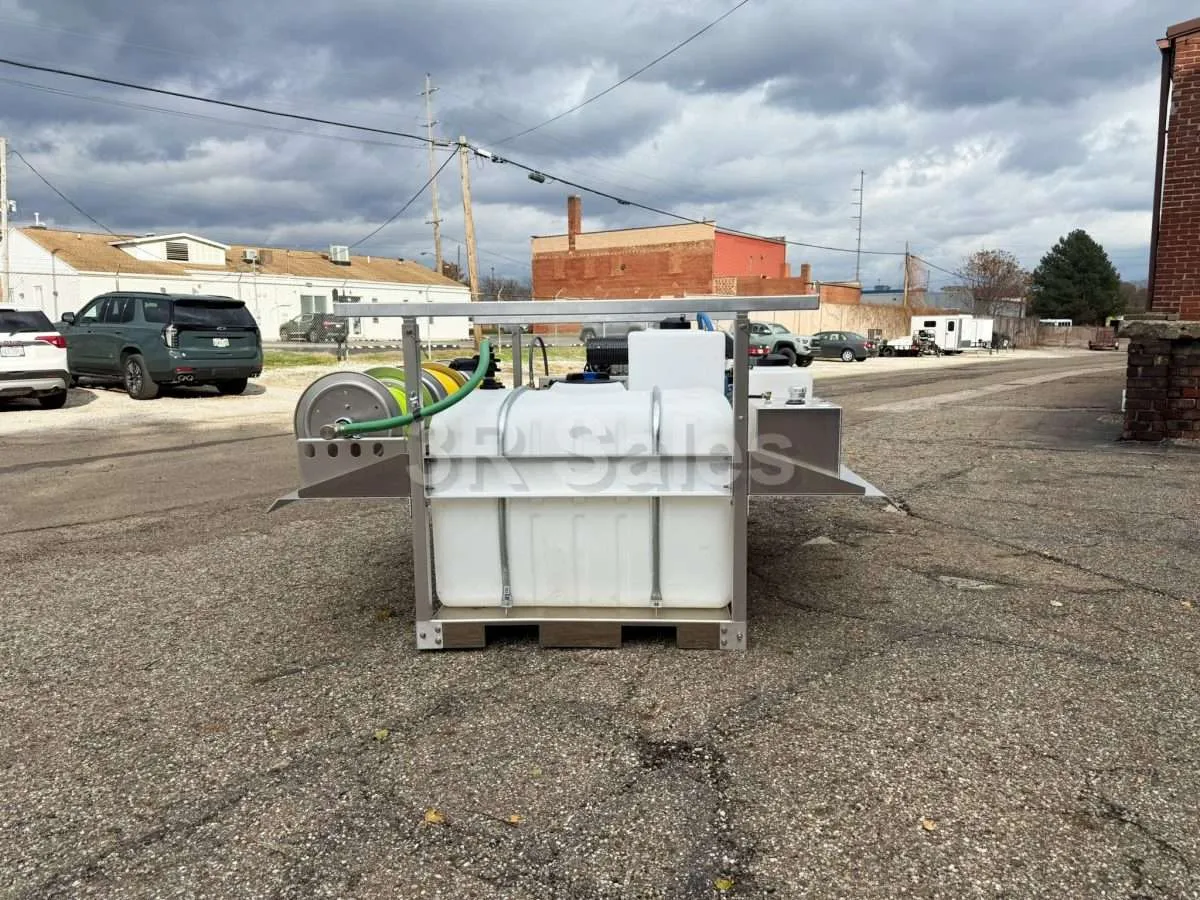

YETI: Ready Made 8′ Deluxe Aluminum Skid Assembly – 3500 PSI, 8 GPM Cold Water Washer – Gas Engine Soft Wash System

Description

• Pressure Washer:
  • 3500 PSI, 8 GPM
  • Cold Water
  • Honda GX690 Gas Engine
    • Electric Start
  • Aluminum Skid Frame
  • 11 Gallon Aluminum Fuel Tank with Gauge
  • Battery & Battery Box
  • 36″ Gun & Wand Assembly with Quick Connect Fittings
  • 200′ High Pressure Hose with Quick Connects (this is what will be installed on the high pressure reel listed below)
  • Quick Connect Color-Coded Spray Nozzles
• Cool Bypass for Pressure Washer – protects the pressure washer pump from overheating when trigger is released
• Downstream Soap Injection for the Pressure Washer – Hi-Flow, 20% Adjustable
• Gas Engine Soft Wash System:
  • Includes:
    • 290 PSI, 11 GPM Diaphragm Pump – AR45 or Comet P40 (Which pump is used depends on availability.  Pictured is the P40.)
      • Electric Start
    • Honda GX160 or 200 Engine
    • 18″ Titan Full-Frame Aluminum 12v Electric Rewind Hose Reel -with stainless steel manifold
    • 300′ x 1/2″ of Yellow Soft Wash Hose – Max 600 PSI
    • 55 Gallon Bleach Tank -with custom fabricated, heavy-duty hold-down bands
    • Red Wash Down Gun
    • Heavy Duty Tank Filter
    • Soft Wash Proportioner:
      • Solid Heavy Duty Manifold
      • Chemical Resistant Bleach Valve
      • Water Valve
      • Surfactant Valve
      • Includes: 7 Gal surfactant tank, hardware, plumbing, and installation
• Skid:
  • 8’L x 48″W Base Deluxe Aluminum Skid with Adjustable Ladder Rack, Driver & Passenger Side Shelves, and Third Tailgate Shelf.  Total width approximately 7′ 8″.
• Water Tank:
  • 200 Gallon Flat Bottom Tank – with heavy-duty hold-down bands
  • Tank Overflow Valve – 3/4″ water fill – stop water flow when tank is full and will continue to fill when water level drops
  • Tank Drain – 3/4″ drain hose with ball valve that drains to rear of truck
  • Heavy Duty Tank Filter
• Hose Reels:
  • Inlet Reel – 12v Electric Rewind Titan 3/4″ x 200′ Max – Aluminum 18″ Barrel – 1/2″ Swivel
    • Comes with 100′ x 3/4″ Flexzilla inlet hose installed on reel
  • Pressure Washer Reel – 12v Electric Rewind Titan 3/8″ x 300′ Max – Aluminum 18″ Barrel – 1/2″ Swivel – Stainless Steel Manifold
    • • Comes with the 200′ x 3/8″ gray hose installed on reel
• Battery & Battery Box:
  • • • • to provide power to electric starts on machines
• Bleeder Valve / Pump Primer – bleeds air out of incoming water hose for pressure washer, allowing for easy start-up & preventing pump damage
• Installation – installation of above components on deluxe aluminum skid, including labor, additional plumbing, hardware, & fittings
• Training – Operations, winterization, and safety & maintenance training provided at pick up.  Typically takes 30-90 minutes depending on the complexity of your build
• Dimensions: 94″L x 48″W x 49″H*
• Dry Weight: 1,075lbs*

Add On Options Available (all pictured in photos):

• Surface Cleaner Rack – Aluminum surface cleaner rack installed. Includes hinged locking door for added security.  Fits up to 30″ surface cleaner.
• Add 24″ Surface Cleaner – Whisper Wash 24″ Ground Force XFORCE Stainless Steel Performance Surface Cleaner.  4 Tips.
• Ball Valve Assembly – 5000 PSI Stainless Steel Ball Valve – allows you to switch between spray wand and surface cleaner without having to turn off your pressure washer.
• Add Aluminator Assembly

**Installation of the assembly into your vehicle is not included.  Please contact us at 330-753-8394 for pricing on this service.

****Lead times may vary.  Please call our office for the most accurate production time  330-753-8394.

***Weights and overall dimensions are subject to change.  For questions, please contact the office at 330-753-8394.
