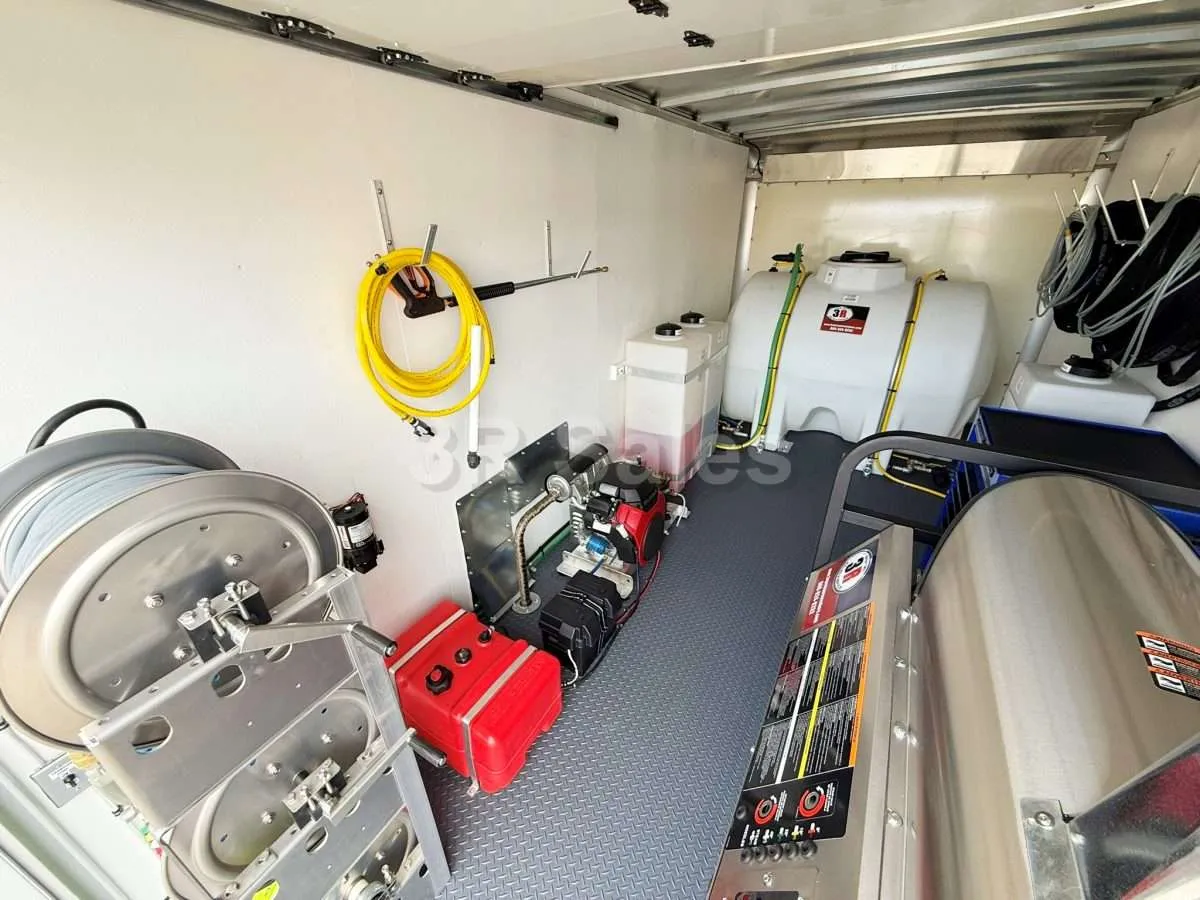

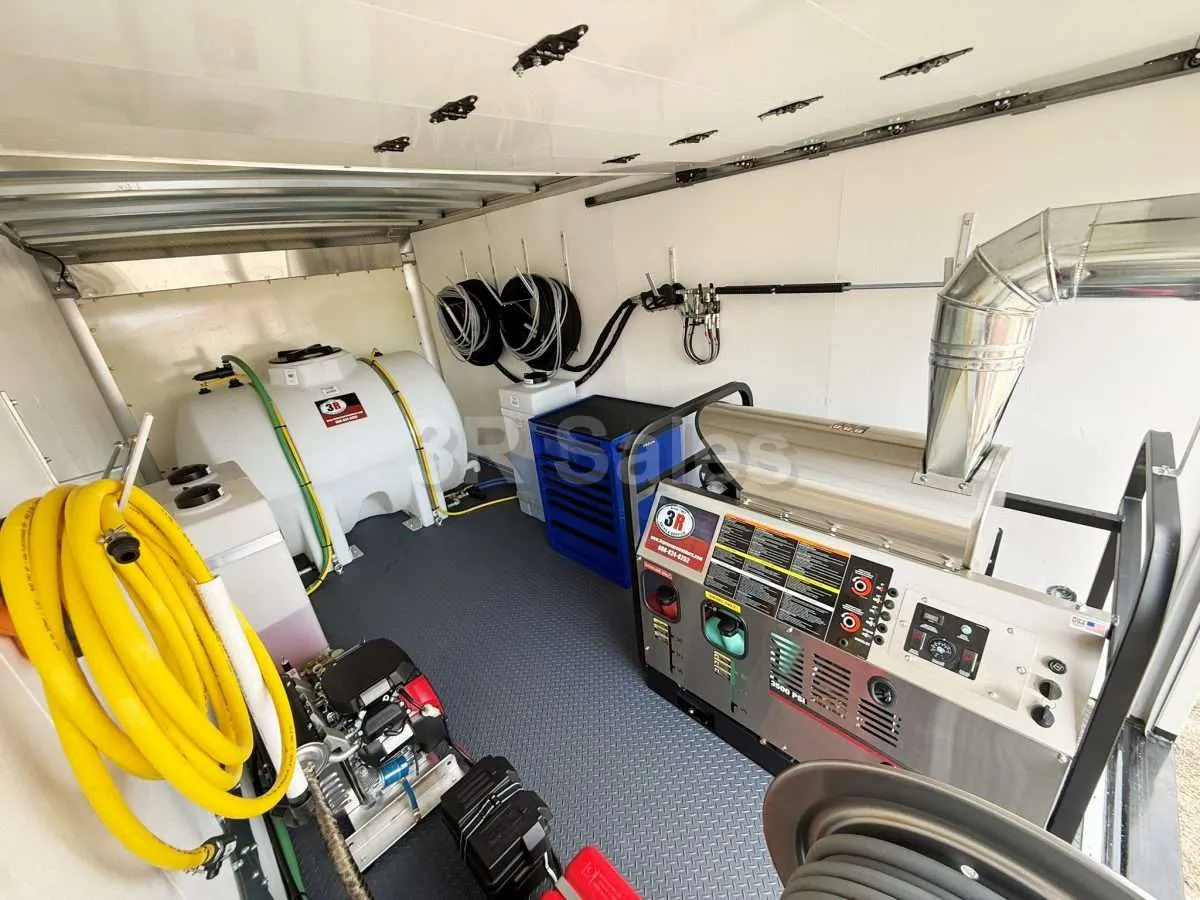

ALLIGATOR: Customizable 16′ Box Truck Installation – 3500 PSI, 5.5 GPM Hot Washer, 3500 PSI, 5.5 GPM Cold Washer, 2-Step Truck Wash Assemblies

Description

**This equipment was installed in a 2024 16′ Chevy Box Truck.  Vehicles are to be supplied by the customer – 3R does not offer the option to purchase vans and/or box trucks through us.  If you’re looking for a custom install in a different style or model vehicle, please reach out to us via our contact form or through email and we’d be happy to get you an accurate quote for your available vehicle!

Hot Water Washer

• 3500 PSI, 5.5 GPM
• Pump
  • Belt drive triplex GP T-Series pump with ceramic plungers
  • Adjustable high pressure detergent injector
• Engine
  • Honda GX630, Electric Start
  • Performance-proven OHV engine with low-oil protection – battery not included
• Frame
  • Heavy-duty powder coated steel square tube skid frame
  • Stainless-steel coil wrap, control panel and removable
    front panel
• Components
  • Horizontal schedule 80 pipe coil
  • 120V/15-amp auxiliary GFCI outlet
  • 2900-watt generator for efficient power to the burner and controls
  • No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)
  • 10 Gallon Engine & Burner Fuel Tanks
  • Three-way ball valve for inlet selection
  • Detergent and steam valves
  • Adjustable thermostat
  • Hour meter
• Miscellaneous
  • Temperature rise 150°F/66°C above ambient, maximum outlet
    temperature is 200°F

Cold Water Washer

• 3500 PSI
• 5.5 GPM
• Honda V-Twin GX630 Gas Engine
• 18 Amp High Output Charging System: to allow for the addition of a 12V hot box water heater
• Belt Drive General Triplex Plunger Pump
• Genuine OEM Honda Muffler
• External Unloader
• Thermal Relief Valve
• Aluminum Skid Frame
• Pressure System Innovations (PSI) Model
• 19,250 Cleaning Units
• 36″ Wand with 1/4″ QC Socket where spray nozzles attach
• Trigger Gun w/ Safety Lock-Off and 3/8″ QC Plug at inlet
• 12 Gallon Poly Fuel Tank
• Group 24 Battery & Battery Box

Install Package

• (2) Two Step Truck Wash Gun/Wand Assy & 100′ Hose Assy (for each pressure washer).
  • Includes:
    • Custom built 2-step truck washing wand assy with ball valve for soap selection, high pressure bypass valve for rinsing, stainless steel soap injector, stainless high pressure check valve, inline trigger gun & 48′ wand assy with insulated grip.
    • Custom 2-step washing hose assy with 100′ high pressure hose, (2) 100′ chemical hoses, installed in 100′ sleeve for keeping together while washing. Quick connect for connecting high pressure hose to pressure washer. Chemical strainers for each chemical line.
• Cool Bypass System for Pressure Washers:
  • protects the pressure washer pumps from overheating when trigger is released.
• Bleeder Valve / Pump Primer for each pressure washer – helps drain air out of the line for an easy start up on your washer
• 525 Gallon Water Tank
  • Heavy Duty Hold Down Bands
  • Tank Overflow Valve – 3/4″ water fill – stop water flow when tank is full and will continue to fill when water level drops
  • Tank Drain – 2″ Tank drain that drains to passenger side of the truck
• (2) 35 Gallon Soap Tanks – (1) for Step 1 Soap, (1) for Step 2 Soap
• Titan 12″ Hand Crank Aluminum High Pressure Hose Reel (Pressure Washer 1)
  • 1/2″ Stainless Steel Manifold
  • Holds max of 300′ of 3/8″ high pressure hose
  • 200′ x 3/8″ High Pressure Hose, Gray
  • Includes Locking Pin
  • Quick Connect Fitting Installed On Reel: to secure hose while in-transit
  • Stainless Steel Ball Valve: for easily switching between accessories
• Titan 12″ Hand Crank Aluminum Inlet Hose Reel (Inlet Reel)
  • 1″ Manifold
  • Holds max of  100′ of 3/4″ hose
  • 100′ Flexzilla Inlet Hose
  • Includes Locking Pin
  • Fitting Installed On Reel: to secure hose while in-transit
• Titan 12″ Hand Crank Aluminum Soft Wash Hose Reel (Pressure Washer 2):
  • 1/2″ Stainless Steel Manifold
  • Holds max of 200′ x 1/2″ hose
  • Includes 200′ x 3/8″, high pressure blue Hose
  • Includes Locking Pin
  • Quick Connect Fitting Installed On Reel: to secure hose while in-transit
• (2) Stainless Steel Stack Brackets for Hose Reels
• Downstream Soap Injection: Hi -Flow, 20% Adjustable. Features dip tube assy. that can be dropped into any tank on truck.
• Heavy Duty T-Strainer Water Filters:
  • 1 Filters Pre-Water Tank
  • 2 Filters Pre-Pressure Washer Pumps
• Transfer Pump – 12v, 7 GPM Pump wall mounted with inlet & outlet hoses.  For easy transferring of chemicals into and out of your on-board tanks.
• Tool Chest – 7 Drawer tool cabinet.  Colors may vary based on availability.
• Wall Hooks – custom build hooks for hanging up the 2-step gun/wand assemblies
• Installation – installation of above components into pictured van, including labor, additional plumbing, hardware, & fittings
• Training – Operations, winterization, and safety & maintenance training provided at pick up.  Typically takes 30-90 minutes depending on the complexity of your build

Add-On or Upgrade Options: (all pictured in photos)

• Antifreeze System – For easy winterizing of your mobile wash install.  Includes extra 35 gallon antifreeze tank.
• Interior Paint – High gloss white interior paint on walls for brightening, easier cleaning, and moisture resistance.
• Chemical Resistant Protective Flooring: Protects wood floor of trailer from water & harsh chemicals.  Slip Resistant.  Gray Diamond plate pattern.  A 3R exclusive!
