KINGSNAKE: Customizable 16′ Aluminum Flatbed Truck – (2) 3500 PSI, 10 GPM Cold Water Washers, (2) 300 PSI, 11 GPM Gas Soft Washes

KINGSNAKE: Customizable 16′ Aluminum Flatbed Truck – (2) 3500 PSI, 10 GPM Cold Water Washers, (2) 300 PSI, 11 GPM Gas Soft Washes

KINGSNAKE: Customizable 16′ Aluminum Flatbed Truck – (2) 3500 PSI, 10 GPM Cold Water Washers, (2) 300 PSI, 11 GPM Gas Soft Washes

$47,606.00

Description

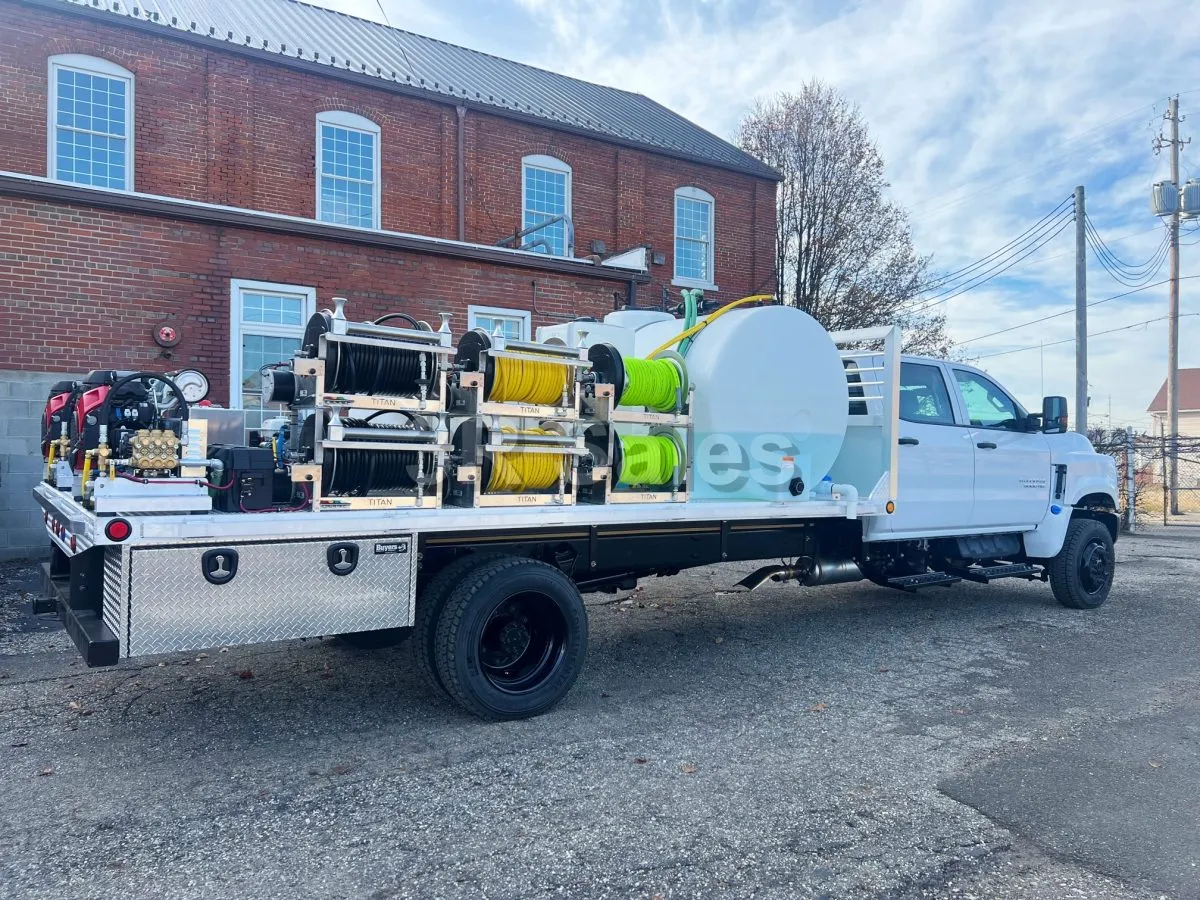

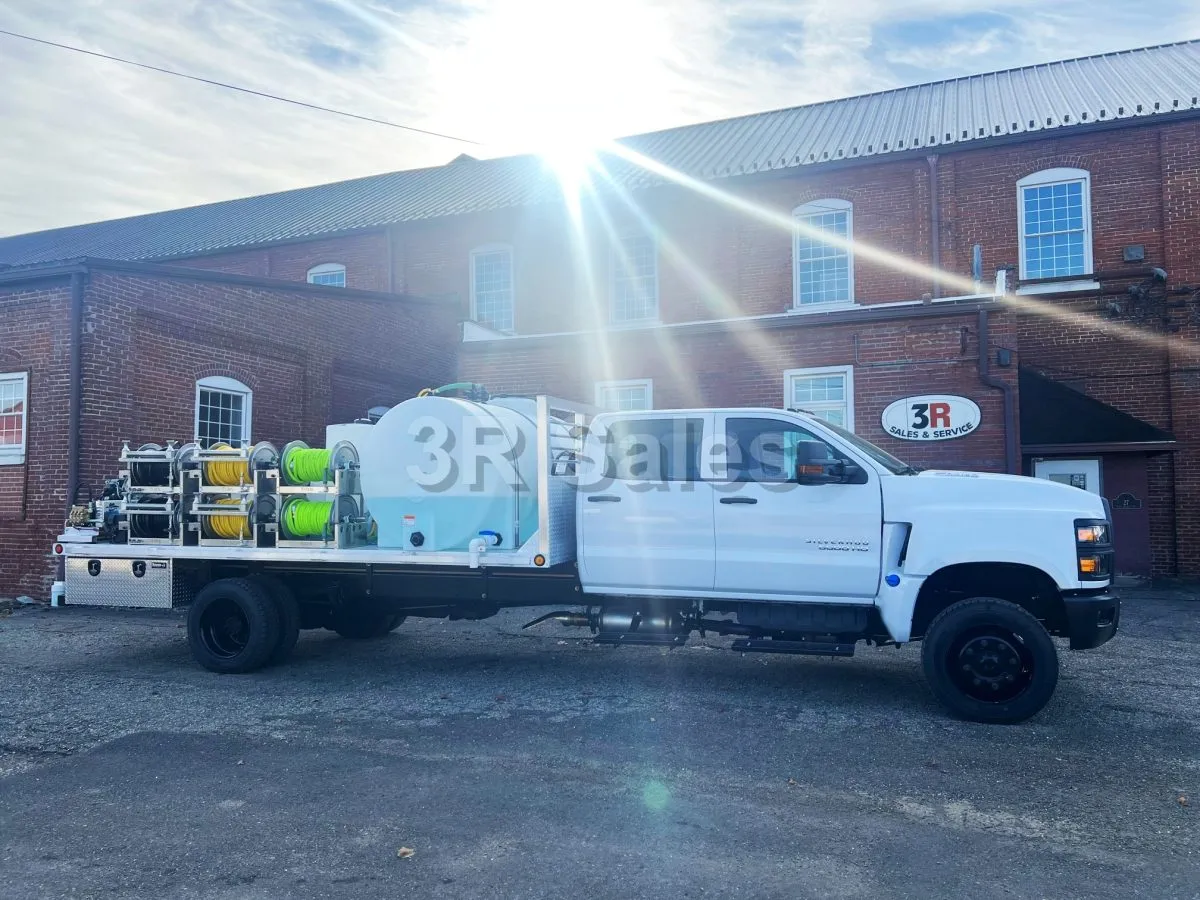

**This equipment was installed on a Chevy Silverado 5500 HD with a custom 16′ aluminum flatbed.  Vehicles are to be supplied by the customer – 3R does not offer the option to purchase vans and/or box trucks through us.  If you’re looking for a custom install in a different style or model vehicle, please reach out to us via our contact form or through email and we’d be happy to get you an accurate quote for your available vehicle!

Pressure Washers

  • Two Cold Water Pressure Washers:
    • 3500 PSI, 10 GPM
    • Honda iGX800 V-Twin Fuel Injected Gas Engine
      • Electronic Fuel Injection
      • Electric STR Governor
      • Drive-by-Wire Control
      • Genuine OEM Honda Muffler
      • High Capacity Charge System
      • Premium Regulator/Rectifier
      • Oil Alert
      • LED Diagnostic Indicator
    • Industrial Duty  Belt Driven General (GP) TSF Series Triplex Plunger Pump
    • Block Mounted High-Flow Pressure Valve
    • Thermal Relief Valve
    • Ultra Rugged Corrosion Resistant Extruded Aluminum Frame
    • Easy Access Two Piece Aluminum Belt Guard
    • 4-Groove Bandit Belt for uniform tension & maximum power transfer
    • Easy Engine & Pump Oil Drain System
    • Quad Anti-Vibration Rubber Isolators

Soft Wash Systems

  • Two Gas Engine Soft Wash Systems:
    • 300 PSI, 11 GPM
    • Electric Start 6.5hp Honda GX160 OR GX200 Engine
    • High Volume Comet P40 Diaphragm Pump
    • Gear Driven
    • Bolt-On Regulator
    • Pressure Gauge (on soft wash hose reels)
    • Heavy Duty Aluminum Skid Frame
  • Two Proportioner Systems for Soft Washes:
    • Pull water, surfactant, and sodium hypochlorite (bleach) without the need for batch mixing
    • Easily change solution ratios
    • Hi-Flow metering valves: no stress on pump and greater spray distance
    • Second soap valve optional
    • Flush Valve for rinsing corrosive chemicals from system
    • Includes 16 Gallon Surfactant Tank (one 16 gallon tank for both soft wash systems)

Trailer Package

  • Cool Bypass System for Pressure Washers:
    • protects the pressure washer pumps from overheating when trigger is released.
  • Bleeder Valve / Pump Primer for each pressure washer:
  • 725 Gallon Water Tank
    • Heavy Duty Hold Down Bands
    • Tank Overflow Valve – 3/4″ water fill – stop water flow when tank is full and will continue to fill when water level drops
    • Tank Drain – 2″ Tank drain that drains to passenger side of the truck
  • 100 Gallon Bleach Tank
  • Titan 18″ Electric Rewind Aluminum High Pressure Hose Reel (Pressure Washer 1)
    • 1/2″ Stainless Steel Manifold
    • Premium Hose Guides
    • Holds max of 200′ of 1/2″ high pressure hose
    • 200′ x 1/2″ High Pressure Hose, Black
    • Includes Locking Pin
    • Quick Connect Fitting Installed On Reel: to secure hose while in-transit
    • Stainless Steel Ball Valve: for easily switching between accessories
  • Titan 18″ Electric Rewind Aluminum High Pressure Hose Reel (Pressure Washer 2)
    • 1/2″ Stainless Steel Manifold
    • Premium Hose Guides
    • Holds max of 200′ of 1/2″ high pressure hose
    • 200′ x 1/2″ High Pressure Hose, Black
    • Includes Locking Pin
    • Quick Connect Fitting Installed On Reel: to secure hose while in-transit
    • Stainless Steel Ball Valve: for easily switching between accessories
  • Titan 18″ Electric Rewind Aluminum Inlet Hose Reel (Inlet Reel 1)
    • 1″ Manifold
    • Holds max of  150′ of 3/4″ hose
    • 100′ Flexzilla Inlet Hose
    • Includes Locking Pin
    • Fitting Installed On Reel: to secure hose while in-transit
  • Titan 18″ Electric Rewind Aluminum Inlet Hose Reel (Inlet Reel 2)
    • 1″ Manifold
    • Holds max of  150′ of 3/4″ hose
    • 100′ Flexzilla Inlet Hose
    • Includes Locking Pin
    • Fitting Installed On Reel: to secure hose while in-transit
  • Titan 18″ Electric Rewind Aluminum Soft Wash Hose Reel (Soft Wash 1):
    • 1/2″ Stainless Steel Manifold
    • Premium Hose Guides
    • Holds max of 300′ x 1/2″ hose
    • Includes 300′ x 1/2″, 600 PSI yellow soft wash hose
    • Includes Locking Pin
    • Quick Connect Fitting Installed On Reel: to secure hose while in-transit
    • Pressure Gauge for Soft Wash Installed on Reel: for easy curbside access
  • Titan 18″ Electric Rewind Aluminum Soft Wash Hose Reel (Soft Wash 2):
    • 1/2″ Stainless Steel Manifold
    • Premium Hose Guides
    • Holds max of 300′ x 1/2″ hose
    • Includes 300′ x 1/2″, 600 PSI yellow soft wash hose
    • Includes Locking Pin
    • Quick Connect Fitting Installed On Reel: to secure hose while in-transit
  • Pressure Gauge for Soft Wash Installed on Reel: for easy curbside access
  • Two Remote Rinse Systems for Gas Engine Soft Wash:
    • From a distance, you can flush out your soft wash system completely, or switch from pulling SH to water with the push of a button!
  • EZ Winterize System:
    • Quickly winterizes your pressure washer & soft wash system – including reels, hoses, plumbing, & more!
    • Includes 55 Gallon Winterizing Tank
  • Heavy Duty T-Strainer Water Filters:
    • 2 Filters Pre-Water Tank
    • 2 Filters Pre-Soft Wash Pumps
    • 2 Filters Pre-Pressure Washer Pumps
  • 18″x18″x48″ Aluminum Diamond Plate Underbody Toolbox
  • 22 Gallon Aluminum Fuel Tank
    • with gauge
  • Installation – installation of above components into pictured van, including labor, additional plumbing, hardware, & fittings
  • Training – Operations, winterization, and safety & maintenance training provided at pick up.  Typically takes 30-90 minutes depending on the complexity of your build

Add On Options:

**If you plan to finance a trailer unit or machinery, final transactions for those items must take place with a 3R associate, pending approval of your application.  All website transactions must be paid in full at checkout.  If you have any questions about the financing process or timelines, please call us at 330-753-8394 or at 800-824-8252.  Thank you!
