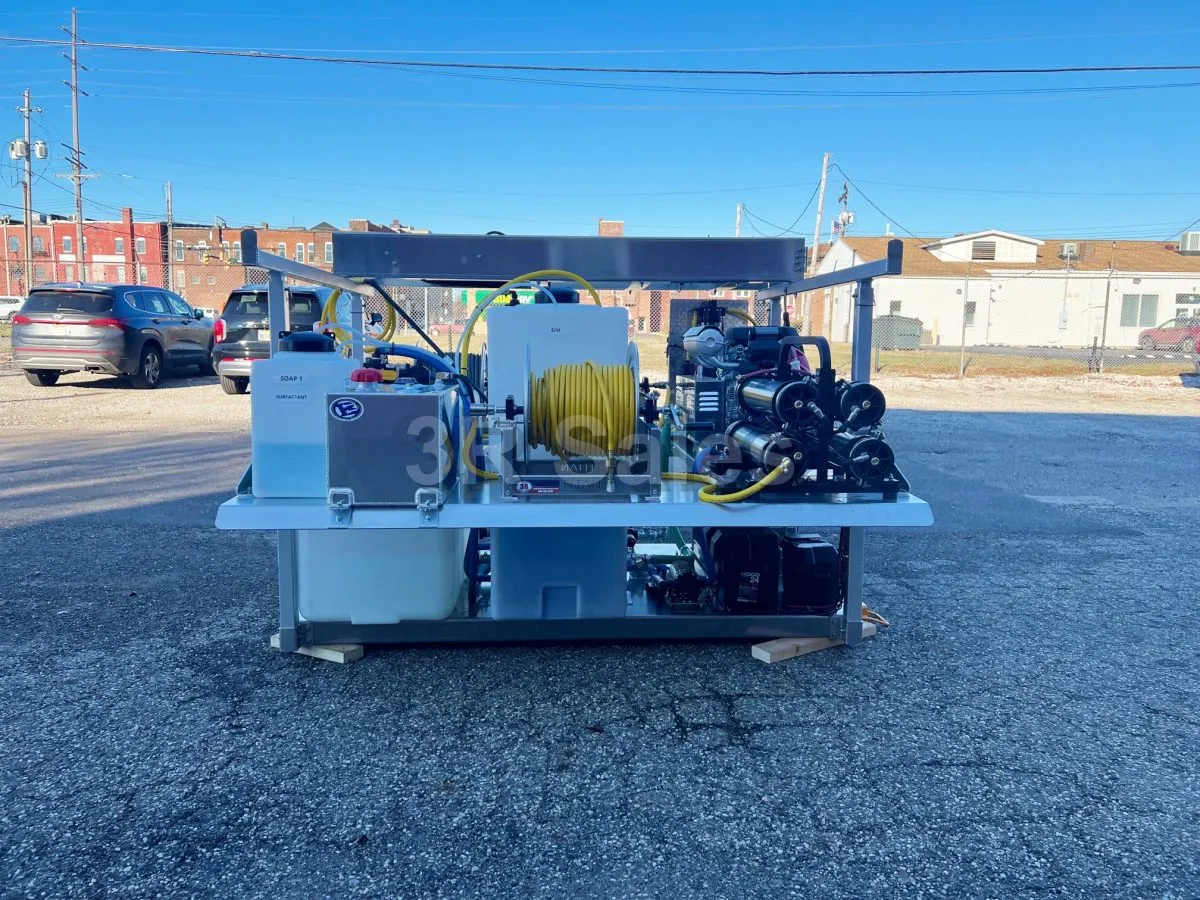

BASILISK: Customizable 6’4″ Deluxe Truck Bed Skid – 8 GPM Cold Water, 12v Soft Wash, RO/DI System

Description

Deluxe Truck Bed Skid:

• Dimensions:
  • 48″ W x 76″ L (6’4″ skid base)
  • Side Shelves are 19″ in depth with a 3″ curved lip
  • Fork Channels: 8″ Wide with 12″ between fork channels
  • Third Tailgate Shelf: 18″ D x 47 3/4″ W
• All Aluminum Construction for corrosion resistance
• Ladder Rack with Side Shelves is custom height adjustable and comes with rounded precision laser cut shelves with extreme duty bolt-on rounded support brackets & hardware.
• Built with the highest quality, USA produced aluminum and stainless hardened materials available to ensure many years of trouble free service & reliability.
• Includes Third Tailgate Shelf

Cold Water Pressure Washer:

• 3500 PSI, 8 GPM
• Honda GX690 Gas Engine
• Electric Start
• Heavy Duty General (GP) Triplex  Plunger Pump – TSF2021
• V-Belt Drive System
• External Unloader
• Thermal Relief Valve
• Powder Coated Steel Skid Mounted
• Anti-Vibration Rubber Isolators
• 36″ Gun & Wand Assembly
• Cool Bypass Pump Protection: protects the pressure washer pump from overheating when trigger is released
• Bleeder Valve / Pump Primer – bleeds air out of incoming water hose for pressure washer, allowing for easy start-up & preventing pump damage

12v Soft Wash System:

• 100 PSI, 7 GPM Remco Diaphragm Pump
• Accumulator Tank
• On/Off Toggle Switch
• Deep Cycle Battery & Battery Box
• NOCO Battery Charger
• 55 Gallon Bleach Tank -with custom fabricated, heavy-duty hold-down bands
• Red Wash Down Gun OR Gun/Wand Assembly with JROD
• Heavy Duty Tank Filter

12v Soft Wash Proportioner:

• Solid Heavy Duty Manifold
• Chemical Resistant Bleach Metering Valve
• Water Metering Valve
• Surfactant Metering Valve
• Includes: 7 Gal surfactant tank, hardware, plumbing, and installation

Tucker® RO/DI System: for spot-free window cleaning!

• (4) serviceable stainless steel housings
• (1) Chloramine / Carbon pre-filter rated for 80,000 gallons
• (2) Ultra low pressure reverse osmosis membranes for high production
• (1) DI Filter for ultra pure water
• Build in pressure gauge
• All metal fittings
• Powder coated steel frame with rubber feet
• Includes:
  • 12″ Hand-Crank Aluminum Full-Frame Titan Hose Reel
  • 150′ Hose
  • Waterproof On/Off Switch
  • Booster Pump
  • Tucker® 30 Carbon Fiber Pole

Install Package:

• 100 Gallon Water Tank – with heavy duty hold down bands
  • Tank Overflow Valve – 3/4″ water fill – stop water flow when tank is full and will continue to fill when water level drops
  • Tank Drain – 3/4″ drain hose with ball valve that drains to rear of truck
  • Heavy Duty Tank Filter
• Inlet Hose Reel – Titan 3/4″ x 100′ Max – Aluminum 12″ Barrel – 1/2″ Swivel
  • Comes with 100′ x 3/4″ Flexzilla inlet hose installed on reel
•  Pressure Washer Reel – Titan 3/8″ x 300′ Max – Aluminum 12″ Barrel – 1/2″ Swivel – Stainless Steel Manifold
  • Comes with the 200′ x 3/8″ gray hose installed on reel
• Soft Wash Reel – Titan 1/2″ x 200′ Max – Aluminum 12″ Barrel – 1/2″ Swivel – Stainless Steel Manifold
  • 200′ x 1/2″ of Yellow Soft Wash Hose – Max 600 PSI
• Downstream Soap Injection – Includes 20% adjustable, stainless steel injector
• 11 Gallon Aluminum Fuel Tank – with fuel gauge
• Battery & Battery Box (Battery not included if shipped)
• Installation – installation of above components on deluxe aluminum skid, including labor, additional plumbing, hardware, & fittings
• Training – Operations, winterization, and safety & maintenance training provided at pick up.  Typically takes 30-90 minutes depending on the complexity of your build

Add-On or Upgrade Options:

• Surface Cleaner Mount – Installed on top of your deluxe skid assembly for convenient storage of your surface cleaner!
• Downstream Manifold – Pull up to three different soaps or chemicals using your downstream soap injector through the pressure washer. Each soap/chemical line plumbed with a ball valve to regulate which items you want to draw or have turned off.

**Installation of the assembly into your vehicle is not included.  Please contact us at 330-753-8394 for pricing on this service.  Service only available at our Barberton, OH location.

****Lead times may vary. standard production of a custom skid unit takes one-two weeks.  Please call our office for the most accurate production time  330-753-8394.

***Weights and overall dimensions are subject to change.  For questions, please contact the office at 330-753-8394.
