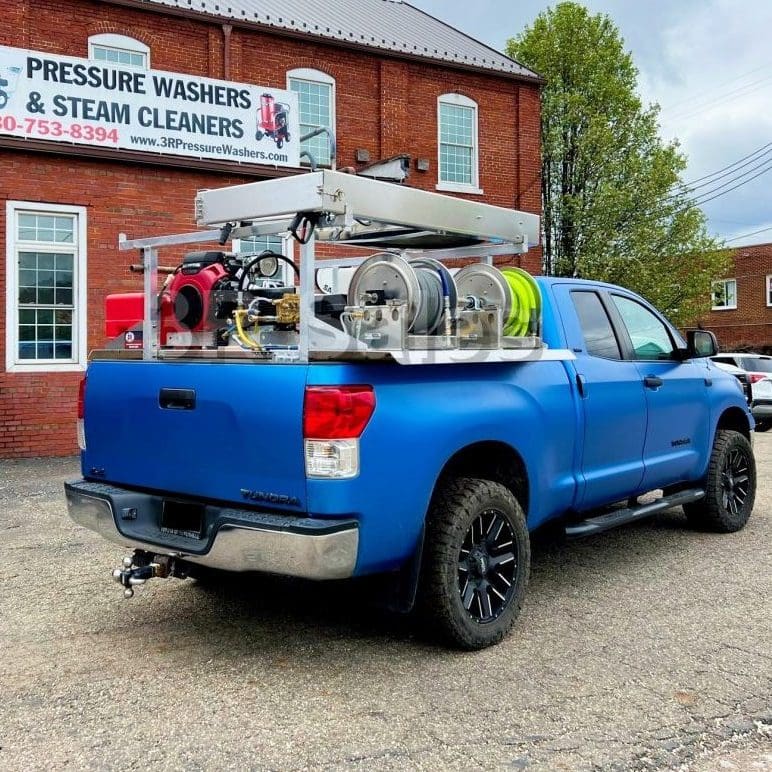

GOBLIN: Customizable 5.5′ Deluxe Truck Bed Skid – 3500 PSI, 8 GPM Cold Water Washer

Description

Pressure Washer:

• 3500 PSI, 8 GPM
• 22hp Honda GX690 Gas Engine
• Electric Start
• Industrial Duty General Pump Triplex Plunger Pump
• High Amp Upgraded Charging System
• Block Mounted High-Flow Pressure Valve
• Thermal Relief Valve
• Ultra Rugged Corrosion Resistant Extruded Aluminum Frame
• Easy Access Two Piece Aluminum Belt Guard
• 4-Groove Bandit Belt for uniform tension & maximum power transfer
• Easy Engine & Pump Oil Drain System
• Quad Anti-Vibration Rubber Isolators
• 36″ Wand with 1/4″ QC Socket where spray nozzles attach
• Quick Connect Color-Coded Spray Nozzles
• Cool Bypass for Pressure Washer – protects the pressure washer pump from overheating when trigger is released
• Downstream Soap Injection for the Pressure Washer – Hi-Flow, 20% Adjustable
• Bleeder Valve / Pump Primer – bleeds air out of incoming water hose for pressure washer, allowing for easy start-up & preventing pump damage

Skid Package:

• Skid:
  • 5.5’L x 48″W Heavy Duty Deluxe Aluminum Skid with Welded Ladder Rack
  • Surface Cleaner Rack with Hinged Locking Door
  • Third Tailgate Shelf
• Water Tank:
  • 100 Gallon Flat Bottom Tank – with heavy-duty hold-down bands
  • Tank Overflow Valve – 3/4″ water fill – stop water flow when tank is full and will continue to fill when water level drops
  • Tank Drain – 3/4″ drain hose with ball valve that drains to rear of truck
  • Heavy Duty Tank Filter
• Inlet Reel – Titan 3/4″ x 100′ Max – Aluminum 12″ Barrel – 1/2″ Swivel
  • Comes with 100′ x 3/4″ Flexzilla inlet hose installed on reel
  • 1″ Manifold
• Pressure Washer Reel – Titan 3/8″ x 300′ Max – Aluminum 12″ Barrel – 1/2″ Swivel – Stainless Steel Manifold
  • Comes with the 200′ x 3/8″ gray hose installed on reel
• Downstream Manifold – Pull up to three different soaps or chemicals using your downstream soap injector through the pressure washer. Each soap/chemical line plumbed with a ball valve to regulate which items you want to draw or have turned off.
• 16 Gallon Soap Tank
• 35 Gallon Soap Tank
• Installation – installation of above components on deluxe aluminum skid, including labor, additional plumbing, hardware, & fittings
• Training – Operations, winterization, and safety & maintenance training provided at pick up.  Typically takes 30-90 minutes depending on the complexity of your build

Approximate Overall Dimensions: 66″ D x 90″ W (including side shelves) x 51″ H

Add On Options:

• Aluminum Surface Cleaner Rack – Mounted on top of your deluxe truck bed skid, installation included.
• 24″ BE Stainless Steel Surface Cleaner
• Upgrade to Aluminum 11g Fuel Tank With Gauge

*VEHICLE NOT PROVIDED BY 3R

**Installation of the assembly into your vehicle is not included.  Please contact us at 330-753-8394 for pricing on this service.  Service only available at our Barberton, OH location.

****Lead times may vary. standard production of a custom skid unit takes one-two weeks.  Please call our office for the most accurate production time  330-753-8394.

***Weights and overall dimensions are subject to change.  For questions, please contact the office at 330-753-8394.
